Ethernet IC BCM84848A1KFSBLG Four-Port 10GBASE-T Transceiver IC BGA Package

Ethernet IC BCM84848A1KFSBLG Four-Port 10GBASE-T Transceiver IC BGA Package

Product Description Of BCM84848A1KFSBLG

BCM84848A1KFSBLG is a complete quad 100BASE-TX, 1000BASE-T and 10GBASE-T solution operating at 100m over CAT6a UTP cable. Its 23 x 23 mm BGA package permits 48-port 1RU switches to be implemented with the PHYs in a single row, with room remaining for 6 QSFP uplinks. The BCM84848 offers lower power than our firstgeneration 40 nm 10GBASE-T PHYs while adding Energy Efficient Ethernet (EEE) for 1000BASE-T and 100BASE-TX, in addition to 10GBASE-T.

Feature Of BCM84848A1KFSBLG

• Highly integrated four-port 10GBASE-T Ethernet transceiver.

• Supports multiple speeds: 10GBASE-T as well as 100BASE-TX and 1000BASE-T.

• XFI and SGMII MAC interface options.

• Compliant with IEEE 802.3, IEEE 802.3an, IEEE 802.3ab, IEEE 802.3u, and IEEE 802.3az standards.

• AutogrEEEn technology permits legacy MACs to receive the power savings of EEE in periods of reduced link utilization.

• Reduced number of power supplies with standard voltages: 1.0V and 2.5V.

• AVS for the creation of a local DVdd supply from a 3.3V global supply.

• Synchronous Ethernet (SyncE) support.

• Cable plant diagnostics.

• IEEE standard 1588-2008 (version 2) support.

• Support for jumbo packets up to 18 KB.

• Super-Isolate mode to completely disable a selected port.

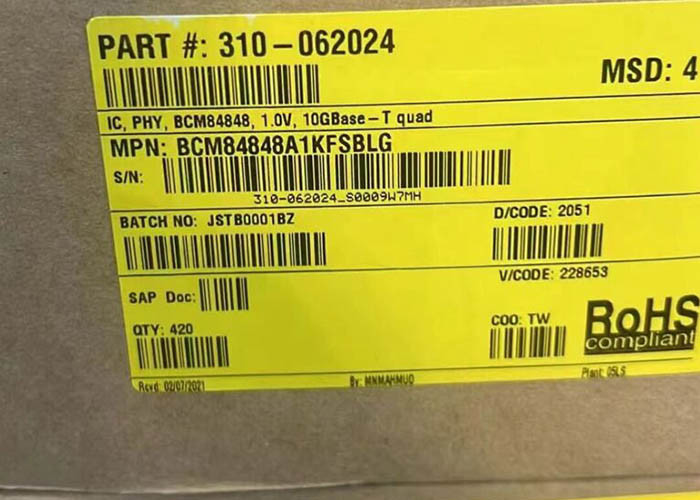

Product Images Of BCM84848A1KFSBLG
