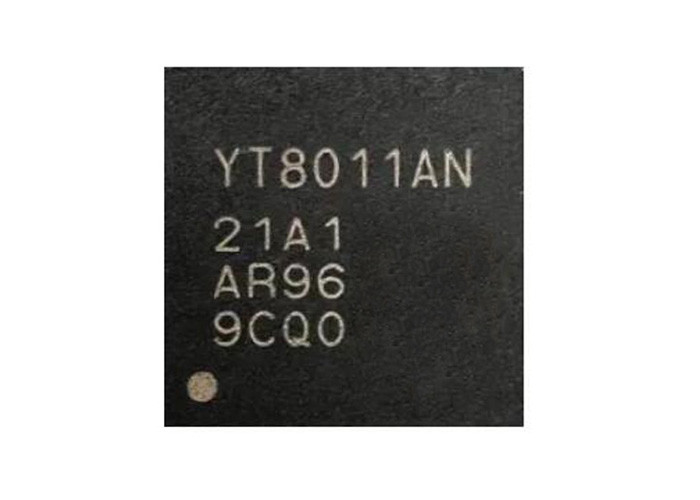

Ethernet IC YT8011AN Single Port Automotive Gigabit Ethernet PHY Transceiver QFN-48

Ethernet IC YT8011AN Single Port Automotive Gigabit Ethernet PHY Transceiver QFN-48​

Product Description Of YT8011AN

YT8011AN is a single-pair Ethernet physical layer transceiver that supports operation over unshielded twisted pair (UTP). The transceiver complies with the Ethernet physical layer portion of 100/1000BASE-T1 as defined by IEEE 802.3bw and the IEEE 802.3bp standard, including auto-negotiation, link-synchronization and OAM features.

Key Features Of YT8011AN

100/1000BASE-T1
Compliant with 100/1000BASE-T1 defined by IEEE 802.3bw and 802.3bp standards
Fast link-up time(<100ms)
Full duplex supported
Auto-negotiation
Link Synchronization
Interface
Supports RGMII with optional internal delay on TX and RX path and 1.8V/2.5V/3.3V RGMII IO voltage
Supports SGMII
MDC/MDIO management interface
Interrupt notifications
PTP GPIO
Precision Time Protocol (PTP)
Supports for Precision time protocol, including IEEE1588v1, v2 and 802.1AS
PTP packet parser supports layer 2 Ethernet, IPv4/UDP, IPv6/UDP packets
One-Step operation supported
Adjustable PTP clock for synchronization
Deterministic and low transmission latency for PTP mechanism

Target Applications Of YT8011AN

• Automotive Infotainment Systems
• Automotive Diagnostics
• Advanced Driver Assistance Systems
• Vehicle Body Control Electronics
• Domain Control Units
• Automotive Switches
