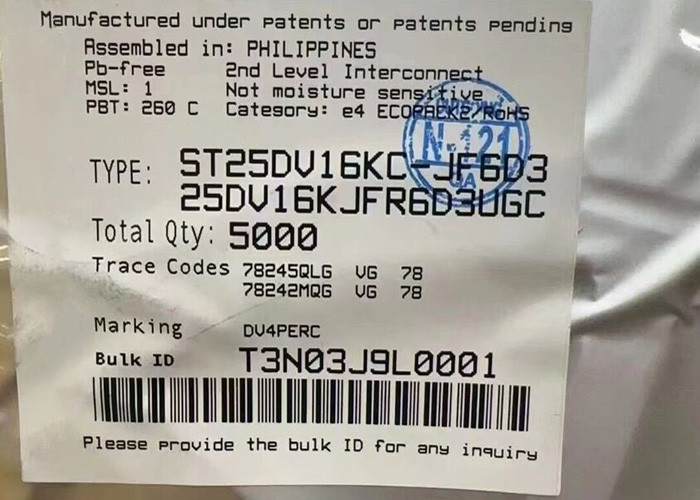

Integrated Circuit Chip ST25DV16KC-JF6D3 13.56MHz RFID Transponder IC UFDFPN-12

Integrated Circuit Chip ST25DV16KC-JF6D3 13.56MHz RFID Transponder IC UFDFPN-12​

Product Description Of ST25DV16KC-JF6D3

ST25DV16KC-JF6D3 is NFC RFID tags offering respectively 16Kbit of electrically erasable programmable memory (EEPROM). These devices feature two interfaces: the first one is an I²C serial link that can be operated from a DC power supply, the second one is an RF link activated when the device acts as a contactless memory powered by the received carrier electromagnetic wave.

Specification Of ST25DV16KC-JF6D3

Key Features Of ST25DV16KC-JF6D3

I²C interface
• Two-wire I²C serial interface supports 1 MHz protocol
• Single supply voltage: 1.8 V to 5.5 V
• Multiple byte programming (up to 256 bytes)
• Configurable I²C target address
Contactless interface
• Based on ISO/IEC 15693
• NFC Forum Type 5 tag certified by the NFC Forum
• Supports all ISO/IEC 15693 modulations, coding, subcarrier modes and data rates
• Custom fast read access up to 53 Kbit/s
• Single and multiple blocks read (same for extended commands)
• Single and multiple (up to four) blocks write (same for extended commands)
• Internal tuning capacitance: 28.5 pF
Memory
• Up to 64 Kbit of EEPROM (depending on version)
• I²C interface accesses bytes
• RF interface accesses blocks of 4 bytes
Fast transfer mode
• Fast data transfer between I²C and RF interfaces
• Half-duplex 256 bytes dedicated buffer
Energy harvesting
• Analog output pin to power external components
