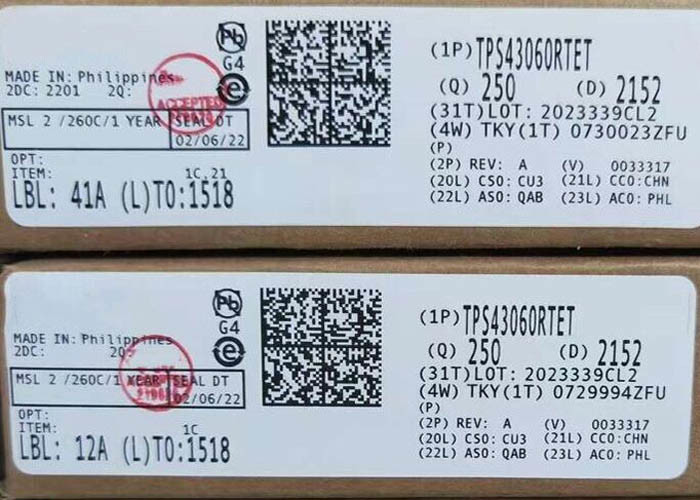

Integrated Circuit Chip TPS43060RTET Synchronous Boost DC-DC Controllers WQFN-16

Integrated Circuit Chip TPS43060RTET Synchronous Boost DC-DC Controllers WQFN-16​

Product Description Of TPS43060RTET

TPS43060RTET is low IQ currentmode synchronous boost controllers with wide-input voltage range from 4.5 to 38 V (40V absolute max) and boosted output range up to 58 V. Synchronous rectification enables high-efficiency for high-current applications, and lossless inductor DCR sensing further improves efficiency.

Specification Of TPS43060RTET

Features Of TPS43060RTET

• 58V Maximum Output Voltage
• 4.5 to 38 V (40 V Absolute Max) VIN Range
• 7.5V Gate Drive Optimized for Standard Threshold MOSFETs
• Current-Mode Control With Internal Slope Compensation
• Adjustable Frequency from 50kHz to 1MHz
• Synchronization Capability to External Clock
• Adjustable Soft-Start Time
• Inductor DCR or Resistor Current Sensing
• Output Voltage Power-Good Indicator
• ±0.8% Feedback Reference Voltage
• 5µA Shutdown Supply Current
• 600µA Operating Quiescent Current
• Cycle-by-Cycle Current Limit and Thermal Shutdown
• Adjustable Undervoltage Lockout (UVLO) and Output Overvoltage Protection
• Small 16-Pin WQFN (3 mm × 3 mm) Package With PowerPAD™
• –40°C to 150°C Operating TJ Range

Application​ Of TPS43060RTET

• Thunderbolt Port for PCs
• Automotive Power Systems
• Synchronous Flyback
• GaN RF Power Amplifiers
• Tablet Computer Accessories
• Battery-Powered Systems
• 5V, 12V, and 24V DC Bus Power Systems
