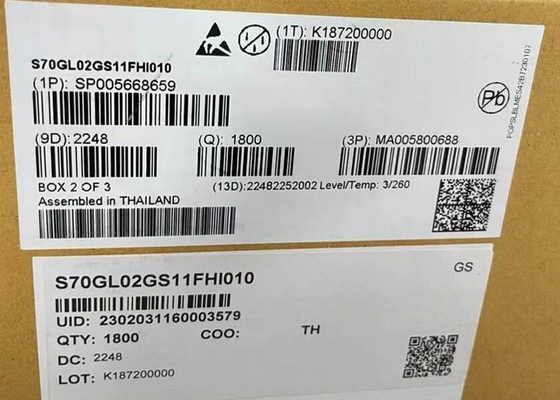

Memory IC Chip S70GL02GS11FHI010 2Gbit Parallel NOR Flash Memory Chip BGA-64

Memory IC Chip S70GL02GS11FHI010 2Gbit Parallel NOR Flash Memory Chip BGA-64​

Product Description Of S70GL02GS11FHI010

S70GL02GS11FHI010 is 2Gbit MIRRORBIT™ flash memory device, it is fabricated on 65-nm MIRRORBIT™ process technology. The device offers a fast page access time of 25 ns with a corresponding random access time of 110 ns. It features a write buffer that allows a maximum of 256 words/512 bytes to be programmed in one operation, resulting in faster effective programming time than standard single byte/word programming algorithms.

Specification Of S70GL02GS11FHI010

Distinctive Characteristics Of S70GL02GS11FHI010
• CMOS 3.0 V core with Versatile I/O™
• Two 1024 Megabit (S29GL01GS) in a single 64-ball Fortified-BGA package
• 65-nm MIRRORBIT™ process technology
• Single supply (VCC) for read / program / erase (2.7 V to 3.6 V)
• Versatile I/O feature
- Wide I/O voltage (VIO): 1.65 V to VCC
• ×16 data bus
• 16-word/32-byte page read buffer
• 512-byte programming buffer
- Programming in page multiples, up to a maximum of 512 bytes
• Sector erase
- Uniform 128-KB sectors
- S70GL02GS: two thousand forty-eight sectors
• Suspend and Resume commands for Program and Erase operations
• Status Register, data polling, and Ready/Busy pin methods to determine device status
• Advanced sector protection (ASP)
- Volatile and non-volatile protection methods for each sector
• Separate 1024-bye one time program (OTP) array with two lockable regions
- Available in each device Support for common flash interface (CFI)
