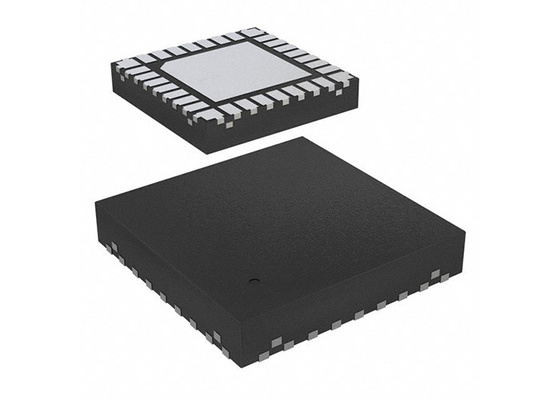

Integrated Circuit Chip MC33926PNBR2 5A H-Bridge Brushed DC Motor Driver 32-PQFN

Integrated Circuit Chip MC33926PNBR2 5A H-Bridge Brushed DC Motor Driver 32-PQFN

Product Description Of MC33926PNBR2

MC33926PNBR2 is a monolithic H-Bridge Power IC designed primarily for automotive electronic throttle control but is applicable to any low-voltage DC servo motor control application within the current and voltage limits stated in this specification.

Specification Of MC33926PNBR2

Features Of MC33926PNBR2

• 8.0 V to 28 V Continuous Operation (Transient Operation from 5.0 V to 40 V)

• 225 mOhm maximum RDS(ON) @ 150°C (each H-Bridge MOSFET)

• 3.0 V and 5.0 V TTL / CMOS Logic Compatible Inputs

• Overcurrent Limiting (Regulation) via Internal Constant-Off-Time PWM

• Output Short Circuit Protection (Short to VPWR or Ground)

• Temperature-Dependant Current-Limit Threshold Reduction

• All Inputs have an Internal Source/Sink to Define the Default (Floating Input) States Sleep Mode with Current Draw < 50 µA (with Inputs Floating or Set to Match Default Logic States)

Applications Of MC33926PNBR2

• Automotive

• Active Suspension

• Braking and Stability Control

• Electric Pumps

• Motorcycle Engine Control Unit (ECU) and Small Engine Control

• Electronic throttle control (ETC)

• Exhaust gas recirculation (EGR)

• Turbo flap control

• Industrial and medical pumps and motor control
