Integrated Circuit Chip ADF4158WCCPZ 6.1GHz Fractional-N Frequency Synthesizer LFCSP-24

Integrated Circuit Chip ADF4158WCCPZ 6.1GHz Fractional-N Frequency Synthesizer LFCSP-24
Integrated Circuit Chip ADF4158WCCPZ 6.1GHz Fractional-N Frequency Synthesizer LFCSP-24
Integrated Circuit Chip ADF4158WCCPZ 6.1GHz Fractional-N Frequency Synthesizer LFCSP-24 Integrated Circuit Chip ADF4158WCCPZ 6.1GHz Fractional-N Frequency Synthesizer LFCSP-24

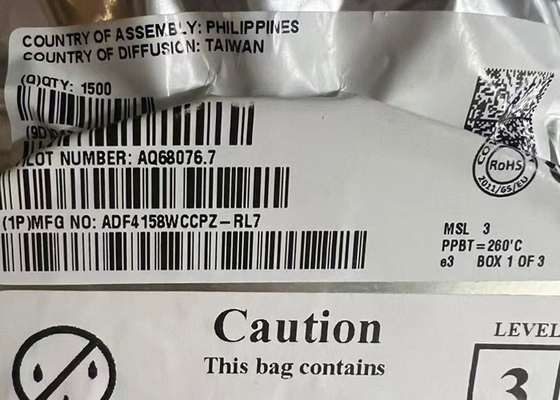

Large Image :  Integrated Circuit Chip ADF4158WCCPZ 6.1GHz Fractional-N Frequency Synthesizer LFCSP-24

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: ADF4158WCCPZ
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: LFCSP-24
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

Integrated Circuit Chip ADF4158WCCPZ 6.1GHz Fractional-N Frequency Synthesizer LFCSP-24

Description
Part Number: ADF4158WCCPZ Type: Fractional-N PLL
Maximum Input Frequency: 6.1 GHz Operating Supply Current: 23 MA
Size: 4mm X 4mm Mounting Style: SMD/SMT

Integrated Circuit Chip ADF4158WCCPZ 6.1GHz Fractional-N Frequency Synthesizer LFCSP-24​



Product Description Of ADF4158WCCPZ

YT8531SC-CA is a highly integrated Ethernet transceiver that complies with 10BASE-Te, 100BASE-TX, and 1000BASE-T IEEE 802.3 standards. The YT8531S provides all the necessary physical layer functions to transmit and receive Ethernet packets over CAT.5E UTP cable.



Specification Of ADF4158WCCPZ

Type
Fractional N Synthesizer (RF)
PLL
Yes
Input
CMOS, TTL
Output
Clock
Number of Circuits
1
Ratio - Input:Output
2:1
Differential - Input:Output
Yes/No
Frequency - Max
6.1GHz
Divider/Multiplier
Yes/Yes
Voltage - Supply
2.7V ~ 3.3V
Operating Temperature
-40°C ~ 125°C
Mounting Type
Surface Mount
Grade
Automotive
Package / Case
24-WFQFN Exposed Pad, CSP
Supplier Device Package
24-LFCSP (4x4)



Features Of ADF4158WCCPZ

  • Radio frequency (RF) bandwidth to 6.1 GHz
  • 25-bit fixed modulus allows subhertz frequency resolution
  • Frequency and phase modulation capability
  • Sawtooth and triangular waveforms in the frequency domain
  • Parabolic ramp
  • Ramp superimposed with FSK
  • Ramp with 2 different sweep rates
  • Ramp delay
  • Ramp frequency readback
  • Ramp interruption
  • 2.7 V to 3.3 V power supply
  • Separate VP allows extended tuning voltage
  • Programmable charge pump currents
  • 3-wire serial interface
  • Digital lock detect
  • Power-down mode
  • Cycle slip reduction for faster lock times
  • Switched bandwidth fast lock mode
  • Qualified for automotive applications


Applications Of ADF4158WCCPZ

  • Frequency modulated continuous wave (FMCW) radar
  • Communications test equipment



Other Electronic Components In Stock

Part Number Package
ADUM342E1WBRQZ SOIC-16
ADUM340E0BRQZ SOIC-16
ADUM340E0WBRQZ SOIC-16
ADUM340E1WBRQZ SOIC-16
ADUM340E1BRQZ SOIC-16
ADUM341E0BRQZ SOIC-16
ADUM341E0WBRQZ SOIC-16
ADUM341E1BRQZ SOIC-16
ADUM341E1WBRQZ SOIC-16
ADN4622BRNZ SOIC-28
ADBMS6822WCCSZ LFCSP-32
ADUM6424ABRNZ5 SOIC-28
ADXL314WBCPZ LFCSP-32
AD74115HBCPZ LFCSP-48
ADN8834WACPZ LFCSP-24
ADXL367BCCZ LGA-12
AD4130-8BCBZ UFBGA-35
AD7745ARUZ TSSOP16
AD7746ARUZ TSSOP16
ADM811SARTZ SOT-143
ADE7761BARSZ TSSOP20
ADP198ACBZ-11 WLCSP4
AD9203ARUZ TSSOP-28
ADV7182WBCPZ LFCSP32
AD4130-8BCBZ WLCSP-35
ADS1245IDGST MSOP-10
AD8155ACPZ LFCSP-64
AD5676RARUZ TSSOP-20
AD5761RBCPZ LFCSP16
ADF4158WCCPZ LFCSP-24
