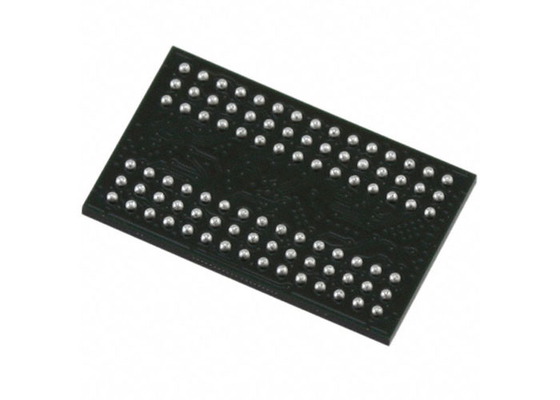

Memory IC Chip MT46H64M32LFBQ-48 AIT:C 208 MHz 5 ns SDRAM Mobile Memory IC

Memory IC Chip MT46H64M32LFBQ-48 AIT:C 208 MHz 5 ns SDRAM Mobile Memory IC

Product Description Of MT46H64M32LFBQ-48 AIT:C

MT46H64M32LFBQ-48 AIT:C 2GB Mobile low-power DDR SDRAM is a high-speed CMOS dynamic random access memory containing 2,147,483,648 bits. It is configured internally as four sets of DRAM. The memory device provides a variety of features and functions for computing devices, mobile phones, and automotive infotainment systems.

Specification Of MT46H64M32LFBQ-48 AIT:C

Feature Of MT46H64M32LFBQ-48 AIT:C

• Bidirectional data strobe per byte of data (DQS)

• Internal, pipelined double data rate (DDR)architecture; two data accesses per clock cycle

• Differential clock inputs (CK and CK#)

• Commands entered on each positive CK edge

• DQS edge-aligned with data for READs; centeraligned with data for WRITEs

• 4 internal banks for concurrent operation

• Data masks (DM) for masking write data; one maskper byte

• Programmable burst lengths (BL): 2, 4, 8, or 16

• Concurrent auto precharge option is supported

• Auto refresh and self refresh modes

• 1.8V LVCMOS-compatible inputs

• Temperature-compensated self refresh (TCSR)2

• Partial-array self refresh (PASR)

• Deep power-down (DPD)

• Status read register (SRR)

• Selectable output drive strength (DS)

• Clock stop capability

• 64ms refresh; 32ms for the automotive temperaturerange
