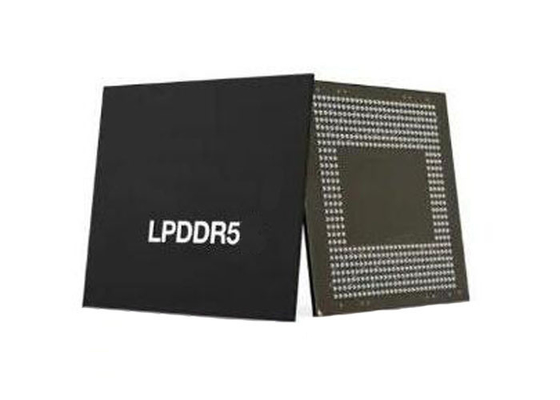

Memory IC Chip MT62F1G64D4CZ-023 WT:C Data Storage IC 64Gbit LPDDR5 SDRAM Memory

Memory IC Chip MT62F1G64D4CZ-023 WT:C Data Storage IC 64Gbit LPDDR5 SDRAM Memory​

Product Description Of MT62F1G64D4CZ-023 WT:C

MT62F1G64D4CZ-023 WT:C is 64Gbit SDRAM - LPDDR5 Memory for Mobile Devices and Artificial Intelligence (AI).

Specification Of MT62F1G64D4CZ-023 WT:C

Features Of MT62F1G64D4CZ-023 WT:C

• Architecture
– 17.1 GB/s maximum bandwidth per channel
– Frequency range: 1067–5 MHz (data rate range per pin: 8533–40 Mb/s with WCK:CK = 4:1)
– Selectable CKR (WCK:CK = 2:1 or 4:1)
• Ultra-low-voltage core and I/O power supplies
– VDD1 = 1.70–1.95V; 1.80V TYP
– VDD2H = 1.01–1.12V; 1.05V TYP
– VDD2L = VDD2H or 0.87–0.97V; 0.90V TYP
– VDDQ = 0.50V or 0.45V1 TYP; 0.30V TYP (ODT off only)
• I/O characteristics
– Interface-LVSTL 0.5/0.3
– I/O type: Low-swing single-ended, VSS terminated
– VOH-compensated output drive
– Programmable VSS on-die termination (ODT)
– Non target ODT support
– DVFSQ support
