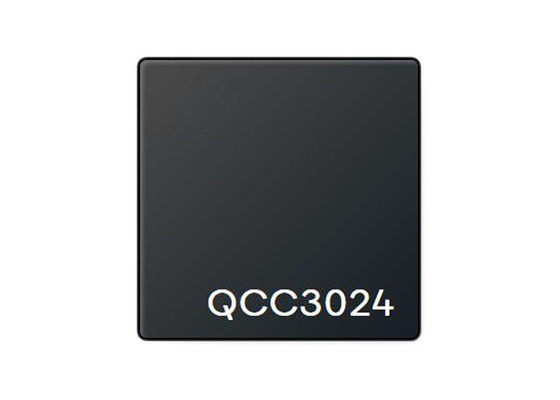

BT IC QCC3024 Entry-Level Flash Low-Power Dual Mode BT 5.0 Audio SoC VFBGA-90

BT IC QCC3024 Entry-Level Flash Low-Power Dual Mode BT 5.0 Audio SoC VFBGA-90​

Product Description Of QCC3024

QCC3024 is an entry-level flash programmable, dual mode BT v5.0 Audio SoC, based on an extremely low power architecture. The QCC3024 is available in a VFBGA package and is designed to help customers reduce development time and cost when developing BT Stereo Headsets.

Features Of QCC3024

• BT Low Energy 5.0
• Extremely low-power audio DSP with on-chip ROM and RAM
• High-performance 24-bit stereo audio interface
• Digital and analog microphone interfaces
• Flexible PIO controller and LED pins with PWM support
• Integrated PMU: Dual SMPS for system/digital circuits, Integrated Li-ion battery charger
• SBC and AAC audio codec support
• Serial interfaces: UART, Bit Serializer (I²C/SPI), USB 2.0
• 90-ball 5.5 x 5.5 x 1.0 mm, 0.5 mm pitch VFBGA
• Single ended antenna connection with on-chip balun and Tx/Rx switch
• BT, BT low energy, and mixed topologies supported
• 32-bit Firmware Processor, reserved for system use, runs BT upper stack, profiles, house-keeping code
• On-chip caches per core allow for optimized performance and power consumption
• 32-bit Kalimba audio digital signal processor (DSP) core with flexible clocking from 2 MHz to 120 MHz to allow optimization and trade-off performance vs. power consumption
• Both analog-to-digital converter (ADC)s and digital-to analog converter (DAC)s support sample rates of 8, 16, 32, 44.1, 48, 96 kHz. DACs also support 192 kHz.

Block Diagram Of QCC3024
