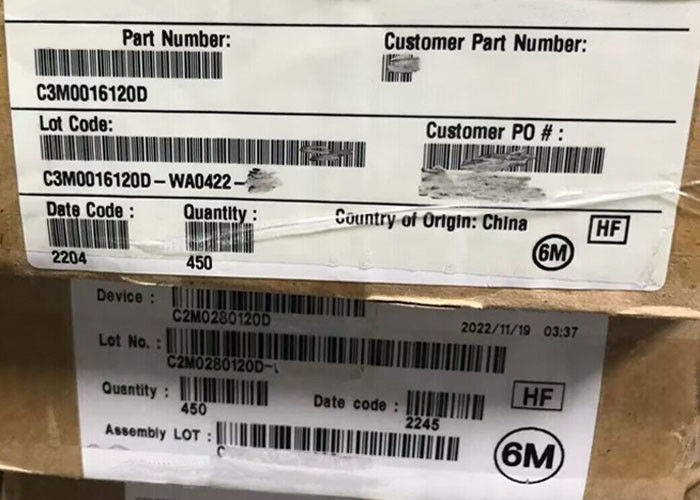

Integrated Circuit Chip C2M0280120D 1200V Silicon Carbide MOSFET Transistors TO-247-3

Integrated Circuit Chip C2M0280120D 1200V Silicon Carbide MOSFET Transistors TO-247-3
Integrated Circuit Chip C2M0280120D 1200V Silicon Carbide MOSFET Transistors TO-247-3
Integrated Circuit Chip C2M0280120D 1200V Silicon Carbide MOSFET Transistors TO-247-3 Integrated Circuit Chip C2M0280120D 1200V Silicon Carbide MOSFET Transistors TO-247-3

Large Image :  Integrated Circuit Chip C2M0280120D 1200V Silicon Carbide MOSFET Transistors TO-247-3

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: C2M0280120D
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: TO-247-3
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

Integrated Circuit Chip C2M0280120D 1200V Silicon Carbide MOSFET Transistors TO-247-3

Description
Part Number: C2M0280120D Channel Mode: Enhancement
Forward Transconductance - Min: 2.8 S Id - Continuous Drain Current: 10 A
Pd - Power Dissipation: 62.5 W Qg - Gate Charge: 5.6 NC

Integrated Circuit Chip C2M0280120D 1200V Silicon Carbide MOSFET Transistors TO-247-3



Product Description Of C2M0280120D

C2M0280120D is 1200V, 320mΩ, 10A N-Channel Enhancement Mode SiC MOSFET Transistors in TO-247-3 package.


Specification Of C2M0280120D

FET Type
N-Channel
Technology
SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)
1200 V
Current - Continuous Drain (Id) @ 25°C
10A (Tc)
Drive Voltage (Max Rds On, Min Rds On)
20V
Rds On (Max) @ Id, Vgs
370mOhm @ 6A, 20V
Vgs(th) (Max) @ Id
2.8V @ 1.25mA (Typ)
Gate Charge (Qg) (Max) @ Vgs
20.4 nC @ 20 V
Vgs (Max)
+25V, -10V
Input Capacitance (Ciss) (Max) @ Vds
259 pF @ 1000 V
Power Dissipation (Max)
62.5W (Tc)
Operating Temperature
-55°C ~ 150°C (TJ)
Mounting Type
Through Hole
Supplier Device Package
TO-247-3
Package / Case
TO-247-3


Features Of C2M0280120D

  • Stable RDS(ON) over temperature
  • Available in package options with separate Kelvin source pin
  • Extremely fast switching
  • Reduction of heat-sink requirements



Benefits Of C2M0280120D

  • Easier to drive (+15V gate drive)
  • Improved system-level efficiency
  • Rugged body diode (no need for external diode)
  • Avalanche ruggedness


Applications Of C2M0280120D

  • Solar inverters and energy storage
  • Onboard and fast DC EV-Charging Systems
  • Motor control and drives
  • Welding and inductive heating
  • Auxiliary power supplies
  • High-voltage DC/DC converters
