Integrated Circuit Chip STGWA40HP65FB2 Trench Gate Field-Stop 650V 40A High-Speed IGBT Transistors

Integrated Circuit Chip STGWA40HP65FB2 Trench Gate Field-Stop 650V 40A High-Speed IGBT Transistors
Integrated Circuit Chip STGWA40HP65FB2 Trench Gate Field-Stop 650V 40A High-Speed IGBT Transistors
Integrated Circuit Chip STGWA40HP65FB2 Trench Gate Field-Stop 650V 40A High-Speed IGBT Transistors Integrated Circuit Chip STGWA40HP65FB2 Trench Gate Field-Stop 650V 40A High-Speed IGBT Transistors

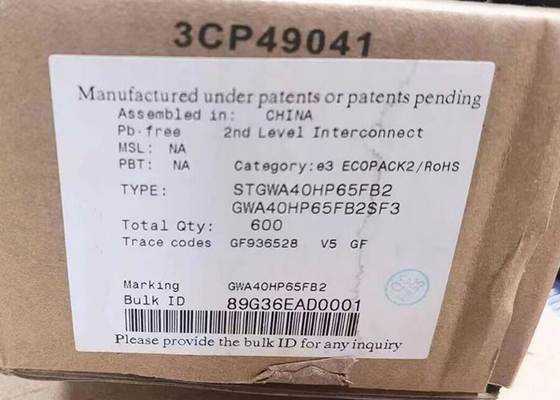

Large Image :  Integrated Circuit Chip STGWA40HP65FB2 Trench Gate Field-Stop 650V 40A High-Speed IGBT Transistors

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: STGWA40HP65FB2
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: TO-247-3
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

Integrated Circuit Chip STGWA40HP65FB2 Trench Gate Field-Stop 650V 40A High-Speed IGBT Transistors

Description
Part Number: STGWA40HP65FB2 Collector- Emitter Voltage VCEO Max: 650 V
Collector-Emitter Saturation Voltage: 1.55 V Maximum Gate Emitter Voltage: - 20 V, 20 V

Integrated Circuit Chip STGWA40HP65FB2 Trench Gate Field-Stop 650V 40A High-Speed IGBT Transistors



Product Description Of STGWA40HP65FB2
STGWA40HP65FB2 is Trench Gate Field-Stop 650V 40A High-Speed HB2 IGBT Transistors.



Specifications Of STGWA40HP65FB2

Single

650 V

1.55 V

- 20 V, 20 V

72 A

227 W

- 55 C

+ 175 C

Continuous Collector Current Ic Max:

72 A

Gate-Emitter Leakage Current:

250 nA



Features Of STGWA40HP65FB2

  • Maximum junction temperature : TJ = 175 °C

  • Low VCE(sat) = 1.55 V(typ.) @ IC = 40 A

  • Co-packaged protection diode

  • Minimized tail current

  • Tight parameter distribution

  • Low thermal resistance

  • Positive VCE(sat) temperature coefficient



Applications Of STGWA40HP65FB2

  • Welding

  • Power factor correction
