Connectors 2-1761605-9 Wire To Board Connectors 26Position Ribbon Cable Connectors

Connectors 2-1761605-9 Wire To Board Connectors 26Position Ribbon Cable Connectors
Connectors 2-1761605-9 Wire To Board Connectors 26Position Ribbon Cable Connectors
Connectors 2-1761605-9 Wire To Board Connectors 26Position Ribbon Cable Connectors Connectors 2-1761605-9 Wire To Board Connectors 26Position Ribbon Cable Connectors Connectors 2-1761605-9 Wire To Board Connectors 26Position Ribbon Cable Connectors

Large Image :  Connectors 2-1761605-9 Wire To Board Connectors 26Position Ribbon Cable Connectors

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: 2-1761605-9
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: 26 Position
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

Connectors 2-1761605-9 Wire To Board Connectors 26Position Ribbon Cable Connectors

Description
Part Number: 2-1761605-9 Number Of Rows: 2 Row
Row Spacing: 2.54 Mm (0.1 In) Termination Style: Solder Pin
Mounting Angle: Right Angle Application: Wire-to-Board

Connectors 2-1761605-9 Wire To Board Connectors 26Position Ribbon Cable Connectors

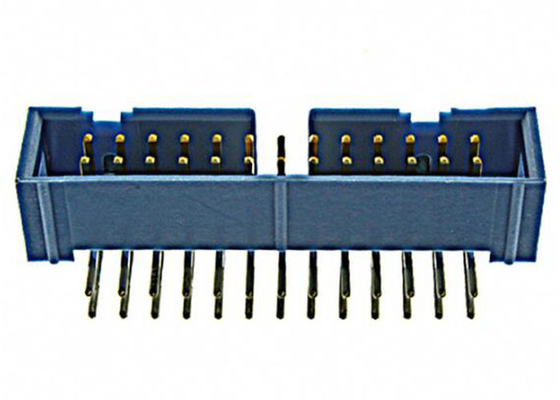

Product Description Of 2-1761605-9

2-1761605-9 is Wire-to-Board, 26 Position Ribbon Cable Connectors.


Specification Of 2-1761605-9

Connector Type
Header
Contact Type
Male Pin
Pitch - Mating
0.100" (2.54mm)
Number of Positions
26
Number of Rows
2
Row Spacing - Mating
0.100" (2.54mm)
Number of Positions Loaded
All
Style
Board to Cable/Wire
Shrouding
Shrouded - 4 Wall
Mounting Type
Through Hole, Right Angle
Termination
Solder
Fastening Type
Push-Pull
Contact Length - Mating
0.240" (6.10mm)
Contact Length - Post
0.102" (2.60mm)
Insulation Height
0.350" (8.89mm)
Contact Shape
Square
Contact Finish - Mating
Gold
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Contact Finish - Post
Tin
Contact Material
Phosphor Bronze
Insulation Material
Polybutylene Terephthalate (PBT)
Features
Keying Slot
Operating Temperature
-65°C ~ 105°C
Material Flammability Rating
UL94 V-0
Insulation Color
Blue
Current Rating (Amps)
1A per Contact
Voltage Rating
250VAC
Contact Finish Thickness - Post
100.0µin (2.54µm)


Features Of 2-1761605-9

  • Connector System : Wire-to-Board
  • Number of Positions : 26
  • Centerline (Pitch) : 2.54 mm [ .1 in ]
  • PCB Mount Retention : Without
  • PCB Mount Orientation : Right Angle


Product DimensionsOf 2-1761605-9

Connectors 2-1761605-9 Wire To Board Connectors 26Position Ribbon Cable Connectors 0
