Integrated Circuit Chip CR636 Voltage Regulator For 14V Alternators MultiWatt8

Integrated Circuit Chip CR636 Voltage Regulator For 14V Alternators MultiWatt8

Product Description Of CR636

CR636 is Alternator regulator for 14V systems with RVC interface. The regulator continuously senses the alternator’s output voltage, rpm, temperature, excitation current. It adjusts the excitation current to keep the output voltage on a constant level. Via PWM commands, the output voltage can be set to any desired value within the given range.

Specification Of CR636

Features Of CR636

• LR slow loads
• LR Boost and fast loads
• Active handling of over-voltage
• Accepts jump start with 28V
• Integrated active freewheeling MOSFET on DF
• DF duty cycle range up to 90%
• High-side DMOS regulated dynamo field (DF) by fixed frequency PWM

Benefits Of CR636

• Fully integrated alternator regulator
• Pulse-width modulated regulator
• Load response function
• Multiwatt8 package or bare die
• Various customer programming options at end of line

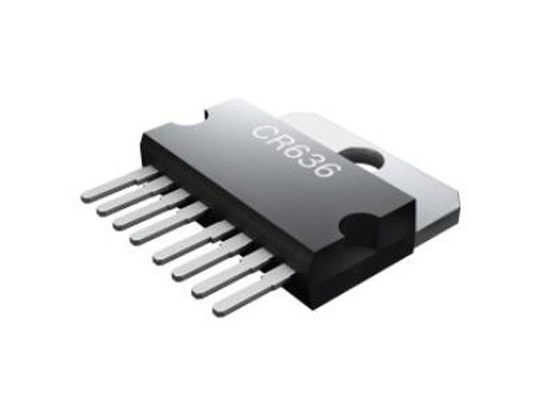

Package: MultiWatt 8 (in-line)
