Integrated Circuit Chip TPS62742DSSR Step Down Converter For Low Power Applications

Integrated Circuit Chip TPS62742DSSR Step Down Converter For Low Power Applications
Integrated Circuit Chip TPS62742DSSR Step Down Converter For Low Power Applications
Integrated Circuit Chip TPS62742DSSR Step Down Converter For Low Power Applications Integrated Circuit Chip TPS62742DSSR Step Down Converter For Low Power Applications

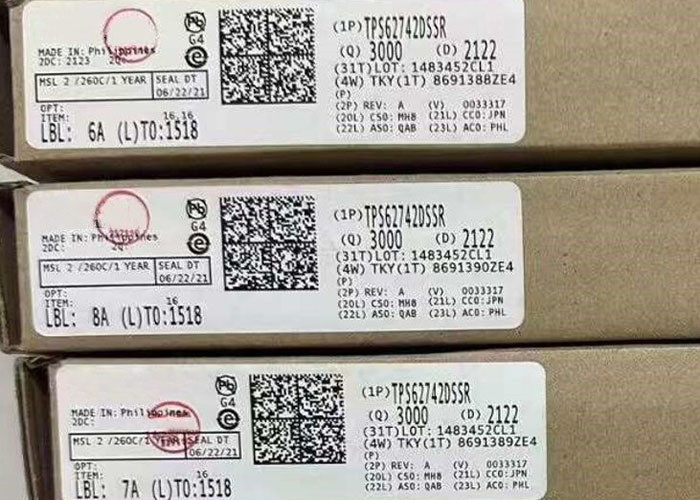

Large Image :  Integrated Circuit Chip TPS62742DSSR Step Down Converter For Low Power Applications

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: TPS62742DSSR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: WSON-12
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

Integrated Circuit Chip TPS62742DSSR Step Down Converter For Low Power Applications

Description
Part Number: TPS62742DSSR Output Voltage: 1.8 V To 3.3 V
Output Current: 400 MA Switching Frequency: 2 MHz
Quiescent Current: 360 NA Operating Supply Current: 300 NA

Integrated Circuit Chip TPS62742DSSR Step Down Converter For Low Power Applications



Product Description Of TPS62742DSSR

TPS62742DSSR is industry’s first step down converter featuring typ. 360nA quiescent current and operating with a tiny 2.2µH inductor and 10µF output capacitor. This new DCS-Control™ based device extends the light load efficiency range below 10µA load currents.


Specification Of TPS62742DSSR

Applications
Converter, Bluetooth (BLT)
Voltage - Input
2.2V ~ 5.5V
Number of Outputs
1
Voltage - Output
1.8V ~ 3.3V
Operating Temperature
-40°C ~ 85°C
Mounting Type
Surface Mount
Package / Case
12-WFDFN Exposed Pad
Supplier Device Package
12-WSON (2x3)


Features Of TPS62742DSSR

  • Input Voltage Range VIN from 2.2V to 5.5
  • Typ. 360nA Quiescent Current
  • Up to 90% Efficiency at 10µA Output Current
  • Up to 300mA / 400mA Output Current (TPS62740/TPS62742)
  • RF Friendly DCS-Control™
  • Up to 2 MHz Switching Frequency
  • Low Output Ripple Voltage
  • 16 Selectable Output Voltages in 100mV Steps between 1.8V to 3.3V
  • Automatic Transition to No Ripple 100% Mode
  • Slew Rate Controlled Load Switch
  • Discharge Function on VOUT / LOAD
  • Power Good Output
  • Optimized for Operation with a Tiny 2.2µH Inductor and 10µF COUT
  • Total Solution Size <31mm2
  • Small 2 × 3 mm2 WSON Package


Applications Of TPS62742DSSR

  • Bluetooth® Low Energy, RF4CE, Zigbee
  • Industrial Metering
  • Energy Harvesting
