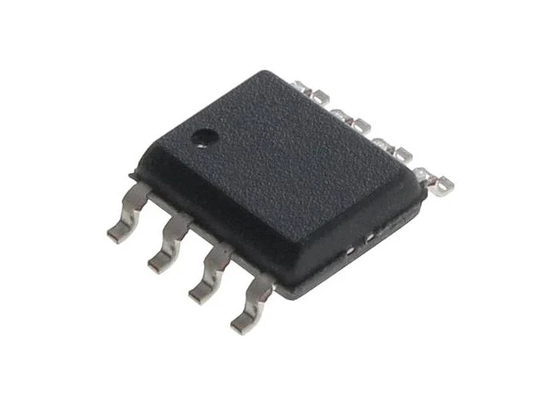

Sensor IC MLX90374GDC-ABB-200-RE Triaxis Performance Rotary Linear Position Sensor IC

Sensor IC MLX90374GDC-ABB-200-RE Triaxis Performance Rotary Linear Position Sensor IC

Product Description Of MLX90374GDC-ABB-200-RE

MLX90374GDC-ABB-200-RE is a third generation Triaxis® position sensor IC. Thanks to the Triaxis® technology the MLX90374 enables measurement of rotary or linear motion of a magnet. With the dual-PWM output or SENT output the MLX90374 enables redundant transmission of position without the overhead of a second sensing element.

Specification Of MLX90374GDC-ABB-200-RE

Features Of MLX90374GDC-ABB-200-RE

• Robustness against stray-field up to 5mT

• ISO26262 ASIL-C Safety Element out-of-Context (SEooC)

• Single die with 2 configurable output drivers

• Triaxis® Hall technology

• PWM redundant dual output

• SENT and programmable switch dual output

• SENT SAE J2716 APR2016

• Programmable Linear Transfer Characteristic

• Up to 32 programmable calibration points

• Programmable measurement range

• Enhanced serial data communication

• Operating supply voltage from 4.5 V to 18 V

• Operating temperature from -40°C to 160°C

• On-chip signal processing for robust absolute position sensing

• 48 bits usable for customer traceability

• AEC-Q100 qualified (Grade-0)

• ISO26262 ASIL-C Safety Element out-of-Context (SEooC)

• Programmable with the PTC-04 and the PTC-04-DB-HALL06 daughterboard

Applications Of MLX90374GDC-ABB-200-RE

• Absolute Rotary Position Sensor

• Pedal Position Sensor

• Throttle Position Sensor

• Ride Height Position Sensor

• Abso lute Linear Position Sensor

• Steering Wheel Position Sensor

• Float-Level Sensor

• Non-Contacting Potentiometer
