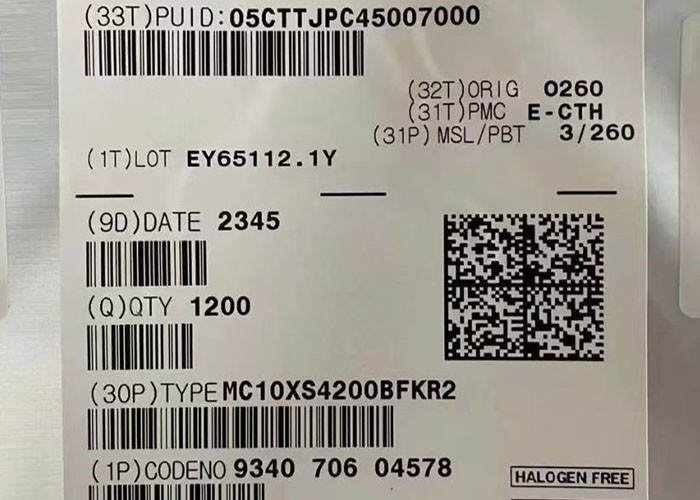

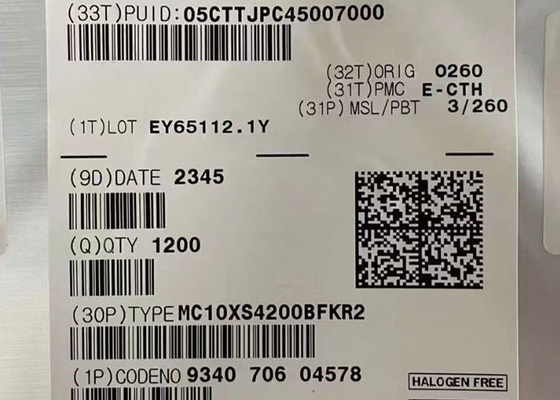

Integrated Circuit Chip MC10XS4200BFKR2 24V 10mOhm Dual High-Side Switch HQFN-23

Integrated Circuit Chip MC10XS4200BFKR2 24V 10mOhm Dual High-Side Switch HQFN-23

Product Description Of MC10XS4200BFKR2

MC10XS4200BFKR2 is part of a 24V dual high-side switch product family with integrated control, and a high number of protective and diagnostic functions. It has been designed for truck, bus, and industrial applications.

Specification Of MC10XS4200BFKR2

Features Of MC10XS4200BFKR2

• Two fully protected 10 m (@ 25 °C) high-side switches
• Up to 8.5 A steady state current per channel
• Separate bulb and DC motor latched overcurrent handling
• Individually programmable internal/external PWM clock signals
• Overcurrent, short-circuit, and overtemperature protection with programmable autoretry functions
• Accurate temperature and current sensing
• Openload detection (channel in OFF and ON state), also for LED applications (7.0 mA typ.)
• Normal operating range: 8.0 to 36 V, extended range: 6.0 to 58 V
• 3.3 V and 5.0 V compatible 16-bit SPI port for device control, configuration and diagnostics at rates up to 8.0 MHz

Simplified Application Aiagram Of MC10XS4200BFKR2
