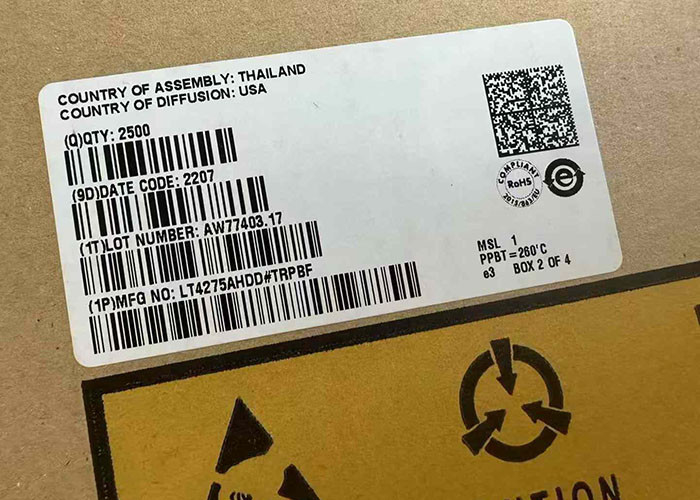

Integrated Circuit Chip LT4275AHDD#TRPBF PD Controllers DFN-10 Package

Integrated Circuit Chip LT4275AHDD#TRPBF PD Controllers DFN-10 Package

Description Of LT4275AHDD#TRPBF
LT4275AHDD#TRPBF is a pin-for-pin compatible family of IEEE 802.3 and LTPoE++ powered device (PD) controllers.
LT4275AHDD#TRPBF employs a proprietary LTPoE++ classification scheme, delivering 38.7W, 52.7W, 70W or 90W of power at the PD RJ45 connector. The LT4275A is fully compatible with IEEE 802.3. The LT4275B is an IEEE 802.3at compliant, Type 2 (PoE+) PD delivering up to 25.5W. The LT4275C is an IEEE 802.3af compliant, Type 1 (PoE) PD delivering up to 13W.

Features Of LT4275AHDD#TRPBF

• IEEE 802.3af/at and LTPoE++™ Powered Device (PD) Controller

• LTPoE++ Supports Power Levels Up to 90W

• LT4275A Supports All of the Following Standards:

• LTPoE++ 38.7W, 52.7W, 70W and 90W

• IEEE 802.3at 25.5W Compliant

• IEEE 802.3af Up to 13W Compliant

• LT4275B is IEEE 802.3at/af Compliant

• LT4275C is IEEE 802.3af Compliant

• 100V Absolute Maximum Input Voltage

• Wide Junction Temperature Range (–40°C to 125°C)

• Overtemperature Protection

• Integrated Signature Resistor

• External Hot Swap™ N-Channel MOSFET for Lowest Power Dissipation and Highest System Efficiency

• Programmable Aux Power Support as Low as 9V

• Optional Support of Non-Standard Low Voltage PoE

• Available in 10-Lead MSOP and 3mm × 3mm DFN Packages

Applications Of LT4275AHDD#TRPBF

• High Power Wireless Data Systems

• Outdoor Security Camera Equipment

• Commercial and Public Information Displays

• High Temperature Industrial Applications
