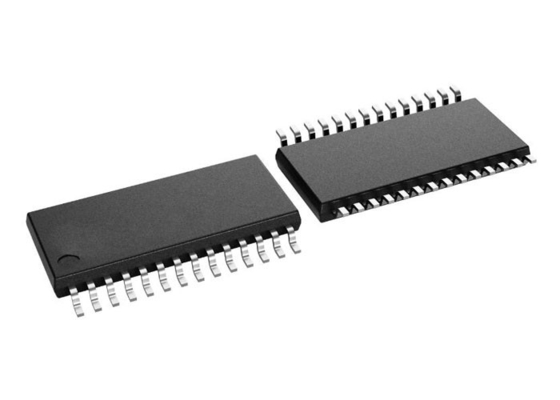

TPS23861PWR Integrated Circuit Chip TSSOP-28 Quad Port Power Over Ethernet PSE Controller

TPS23861PWR Integrated Circuit Chip TSSOP-28 Quad Port Power Over Ethernet PSE Controller

Product Description Of TPS23861PWR

TPS23861PWR is an easy-to-use, flexible, IEEE802.3at PSE solution. As shipped, it automatically manages four 802.3at ports without the need for any external control. The TPS23861 supports Semi-Auto Mode via I²C control for precision monitoring and intelligent power management.

Specification Of TPS23861PWR

Features Of TPS23861PWR

IEEE 802.3at Quad Port PSE controller
- Auto Detect, classification
- Auto Turn-On and disconnect
- Efficient 255-mΩ sense resistor
Pin-Out enables Two-Layer PCB
Kelvin Current Sensing
4-Point detection
Automatic mode – as shipped
- No External terminal setting required
- No Initial I2C communication required
Semi-Automatic mode – set by I2C command
- Continuous Identification and Classification
- Meets IEEE 400-ms TPON specification
- Fast-Port shutdown input
Optional I2C control and monitoring
–40°C to 125°C Temperature range
TSSOP 28 Package 9.8 mm x 6.6 mm

Applications Of TPS23861PWR

Ethernet switches and routers
Surveillance NVR and DVRs
Residential gateways
PoE Pass-Through systems
Wireless backhaul
