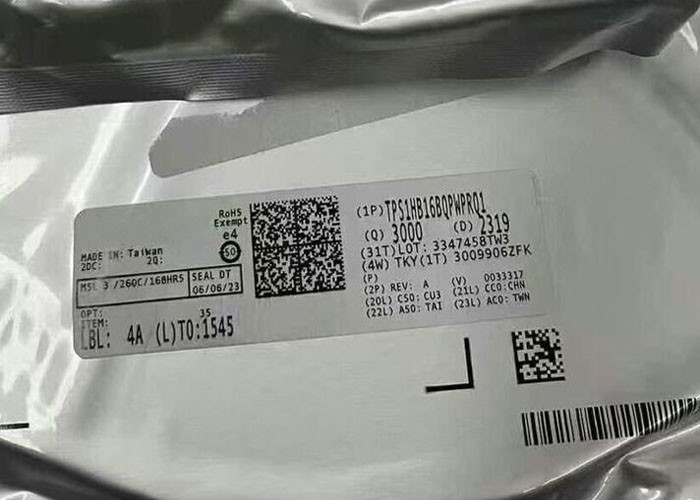

TPS1HB16BQPWPRQ1 Integrated Circuit Chip 40V 16mΩ Automotive Smart High-Side Switch

TPS1HB16BQPWPRQ1 Integrated Circuit Chip 40V 16mΩ Automotive Smart High-Side Switch
TPS1HB16BQPWPRQ1 Integrated Circuit Chip 40V 16mΩ Automotive Smart High-Side Switch

Large Image :  TPS1HB16BQPWPRQ1 Integrated Circuit Chip 40V 16mΩ Automotive Smart High-Side Switch

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: TPS1HB16BQPWPRQ1
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: HTSSOP-16
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union

TPS1HB16BQPWPRQ1 Integrated Circuit Chip 40V 16mΩ Automotive Smart High-Side Switch

Description
Part Number: TPS1HB16BQPWPRQ1 Number Of Outputs: 1 Output
Output Current: 7 A Current Limit:: 4.4 A To 49 A
Voltage - Load: 6V ~ 18V Operating Temperature: -40°C ~ 125°C (TA)

TPS1HB16BQPWPRQ1 Integrated Circuit Chip 40V 16mΩ Automotive Smart High-Side Switch



TPS1HB16BQPWPRQ1 is a smart high-side switch intended for use in 12-V automotive systems. The device integrates robust protection and diagnostic features to ensure output port protection even during harmful events like short circuits in automotive systems.



TPS1HB16BQPWPRQ1 protects against faults through a reliable current limit, which, depending on device variant, is adjustable from 4.4 A to 49 A. The high current limit range allows for usage in loads that require large transient currents, while the low current limit range provides improved protection for loads that do not require high peak current. The device is capable of reliably driving a wide range of load profiles.



TPS1HB16BQPWPRQ1 also provides a high accuracy analog current sense that allows for improved load diagnostics. By reporting load current and device temperature to a system MCU, the device enables predictive maintenance and load diagnostics that improves the system lifetime.



Product Attributes Of TPS1HB16BQPWPRQ1

Switch Type
General Purpose
Number of Outputs
1
Ratio - Input:Output
1:1
Output Configuration
High Side
Voltage - Load
6V ~ 18V
Voltage - Supply (Vcc/Vdd)
Not Required
Current - Output (Max)
49A
Rds On (Typ)
16mOhm
Input Type
Non-Inverting
Fault Protection
Current Limiting (Adjustable), Over Temperature, UVLO
Operating Temperature
-40°C ~ 125°C (TA)
Mounting Type
Surface Mount
Supplier Device Package
16-HTSSOP
Package / Case
16-PowerTSSOP (0.173", 4.40mm Width)



Features Of TPS1HB16BQPWPRQ1

• Single-channel smart high-side switch with 16-mΩ RON (TJ = 25°C)
• Improve system level reliability through adjustable current limiting
– Current limit set-point from 4.4 A to 49 A
• Robust integrated output protection:
– Integrated thermal protection
– Protection against short to ground and battery
– Protection against reverse battery events including automatic switch on of FET with reverse voltage
– Automatic shut off on loss of battery and ground
– Integrated output clamp to demagnetize inductive loads
– Configurable fault handling
• Analog sense output can be configured to accurately measure:
– Load current
– Device temperature
• Provides fault indication through SNS pin
– Detection of open load and short-to-battery



Applications Of TPS1HB16BQPWPRQ1

• Automotive display module
• ADAS modules
• Seat comfort module
• Transmission control unit
• HVAC control module
• Body control modules
• Incandescent and LED lighting



Simplified Schematic Of TPS1HB16BQPWPRQ1
