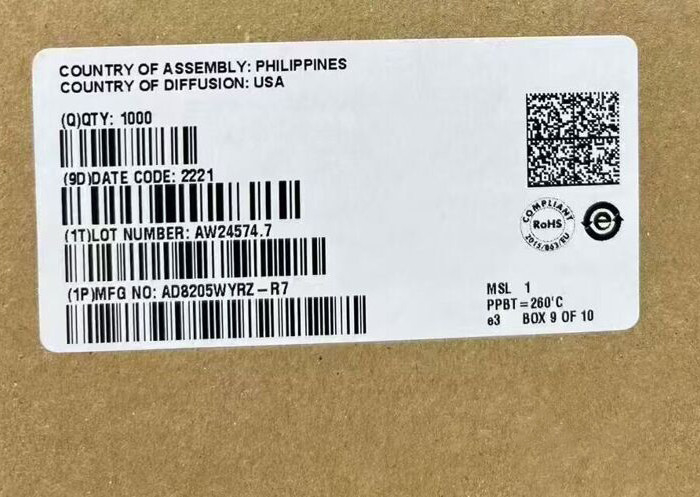

AD8205WYRZ Integrated Circuit Chip Single Supply 42 V System Difference Amplifier

AD8205WYRZ Integrated Circuit Chip Single Supply 42 V System Difference Amplifier

Product Description Of AD8205WYRZ
AD8205WYRZ is a single-supply difference amplifier for amplify-ing small differential voltages in the presence of large common-mode voltages. The operating input common-mode voltage range extends from −2 V to +65 V. The typical single-supply voltage is 5 V.

Specification Of AD8205WYRZ

Features Of AD8205WYRZ
Ideal for current shunt applications
High Common-mode voltage range
−2 V to +65 V operating
−25 V to +75 V survival
Gain = 50 V/V
Wide operating temperature range
−40°C to +125°C: Y and W grade
−40°C to +150°C: H grade
Bidirectional operation
Available in 8-Lead SOIC.
EXCELLENT AC AND DC
PERFORMANCE
15 µV/°C offset drift
30 ppm/°C gain drift
80 dB CMRR dc to 20 kHz
Qualified for Automotive Applications

Applications Of AD8205WYRZ
High-side current sensing in:
Motor controls
Transmission controls
Diesel injection controls
Engine management
Suspension controls
Vehicle dynamic controls
DC-to-dc converters
