PEX88T32 Ethernet IC PCIe Gen 4.0 Switches 32-Lane PCIe Gen 4.0 Retimer For Server

PEX88T32 Ethernet IC PCIe Gen 4.0 Switches 32-Lane PCIe Gen 4.0 Retimer For Server​

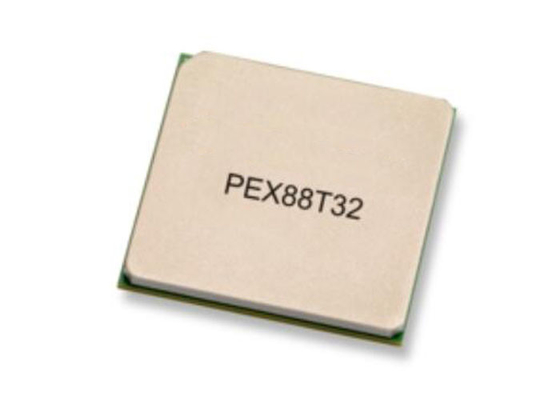

Product Description Of PEX88T32

PEX88T32 is 32-lane PCIe 4.0 Retimer for Serve.

PEX88T32 retimer allows separation of clock domains that include spread-spectrum clocking. The device also supports SRNS, SRIS, and common clock.

PEX88T32 retimer can be designed to support long channels in a server, storage system and NVMe appliance. The retimer device can be placed halfway between CPU and I/O devices to drive PCIe 4.0 signals to the other end of the boards, as shown below.

Specification Of PEX88T32

Features Of PEX88T32

• PCIe 1.0, 2.0, 3.0, and 4.0 support
• 32 bi-directional PCIe lanes: 16 lanes up and 16 lanes down
• The Industry’s best SerDes technology with extended reach (up to 39 dB loss)
− SerDes field-tested by Broadcom in various products
• Low-power SerDes (under 90 mW per lane)
• Configurable with SBR
• Cut-through packet latency of 105 ns
• DPC/eDPC support, Read tracking for surprise removal
• SSC isolation, SRIS, SRNS, and Common Clock support
• Each lane is independent of other lanes
• No reference resistors, NV RAM is programmed during test
• CTLE, 9-tap DFE equalizer to support up to 39 dB channel loss
• CDR, pre/post-cursor settings
• Lane margining and loop-back supported
• Exceeds 20 dB normal channel loss handling set by PCI-SIG
