PEX9781-B080BCG Ethernet IC 81-Lane Managed PCI Express Switches 21-Port ExpressFabric Device

PEX9781-B080BCG Ethernet IC 81-Lane Managed PCI Express Switches 21-Port ExpressFabric Device​

Product Description Of PEX9781-B080BCG

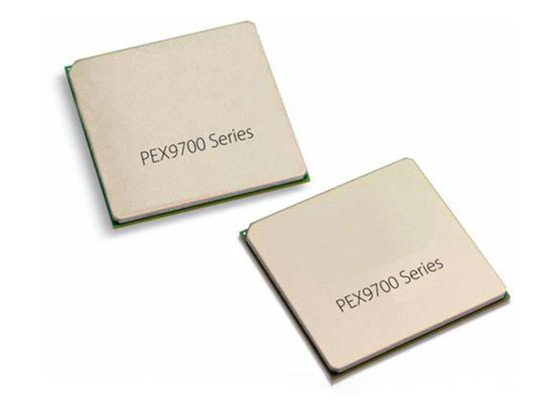

PEX9781-B080BCG - PEX9700 Series Switch Chips
PEX9781-B080BCG - 81-Lane, 21-Port ExpressFabric Device (35 × 35 mm2)
PEX9781-B080BCG - Managed PCI Express Switches Based on ExpressFabric® Technology

Specification Of PEX9781-B080BCG

Part Number: PEX9781-B080BCG
Lanes: 81-Lane
Ports: 21-Port
Latency : 150ns
HPC: 5
Aggregate Bandwidth: 1280GT (8.0 GT/s/Lane x 80 SerDes x2 (full-duplex))
SSC: 20
Dedicated x1 mCPU Port: Yes
DMA Multicast: Yes
Package Size: 35mm x 35mm
Power Typ.: 21.5W
Peer-to-Peer: 22.5
Fanout : 19.6
Fabric: 23.3

Key Advantages Of PEX9781-B080BCG

PCI Express Switches
− 81 Lanes with Integrated on-chip SerDes
− 21 Independent ports
− Designate any Port as the Upstream Port
− Low-power SerDes (under 90mW per Lane)
− Device-Specific Relaxed Ordering
− Port configuration
− Dedicated management port for mCPU
