PEX9733-B080BCG Ethernet IC 33-Lane 9-Port PCI Express Gen3 ExpressFabric Device

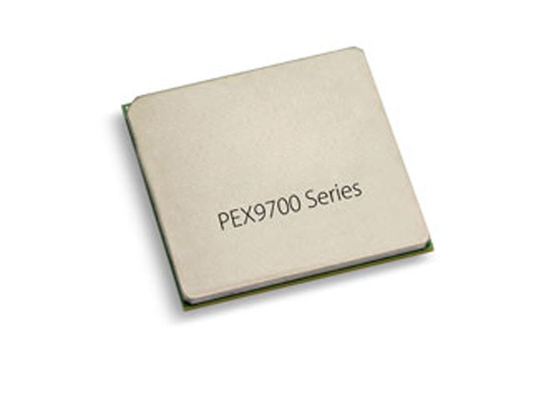

Large Image : PEX9733-B080BCG Ethernet IC 33-Lane 9-Port PCI Express Gen3 ExpressFabric Device

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	PEX9733-B080BCG

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	BGA
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

PEX9733-B080BCG Ethernet IC 33-Lane 9-Port PCI Express Gen3 ExpressFabric Device

Description

Part Number:	PEX9733-B080BCG	Lanes:	33-Lane
Latency:	150ns	Power Typ. (W):	7.9W
Packaging Size:	27mm X 27mm	Aggregate Bandwidth:	512GT (8.0 GT/s/Lane X 2 SerDes X2 (full-duplex))
Highlight:	PEX9733-B080BCG , PEX9733-B080BCG Ethernet IC , 9-Port PCI Express Gen3 ExpressFabric Device

PEX9733-B080BCG Ethernet IC 33-Lane 9-Port PCI Express Gen3 ExpressFabric Device

Product Description Of PEX9733-B080BCG

PEX9733-B080BCG is 33-Lane, 9-Port PCI Express Gen3 ExpressFabric Device (27 × 27 mm2).

Specification Of PEX9733-B080BCG

Dedicated Management Port	Yes
DPC /eDPC	Yes
Ethernet DMA (NIC DMA)	Yes
HPC	2
Lanes	33
Latency	150ns
MSI-X	Yes
Packaging Size	27mm X 27mm
Ports	9
Power Typ.	7.9W
Shared I/O	Yes
SRIS	Yes
SSC (Spread Spectrum Clocking )	8
TWC Ports	8

Key Advantages Of PEX9733-B080BCG
• PCI Express Switches
− 33-Lanes with Integrated on-chip SerDes
−9 Independent ports
−Designate any Port as the Upstream Port
− Low-power SerDes (under 90mW per Lane)
− Device-Specific Relaxed Ordering
− Port configuration
− Dedicated management port for mCPU
− x4, x8, or x16, depending on Port configuration; x4 can down-train to x1 and x2 width
− Configurable through serial EEPROM, I2C, SMBus, and/or Host port
• High Performance
− Full line rate on all ports
• Cut-Thru packet latency of less than 150ns (x16 to x16)
− 2KB Max Payload Size
− Multicast through DMA
• Quality of Service (QoS)
− 8 Traffic Classes (TC) supported
• Reliability, Availability, Serviceability
− visionPAK
− performance PAK
− DPC/eDPC Support
− Read Tracking for surprise removal
− All ports Hot-Plug capable thru I2C –SSC isolation on all ports
− SRIS support
− ECRC and Poison bit support
− Port Status bits and GPIO availabl
