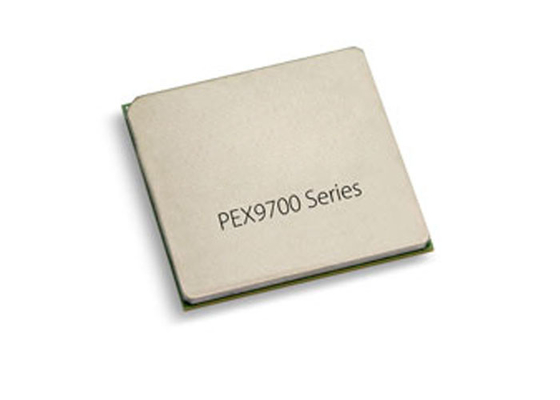

PEX9712-AA80BCG Ethernet IC 12-Lane 5-Port PCI Express Gen3 Switches PEX9700 Series Switch

PEX9712-AA80BCG Ethernet IC 12-Lane 5-Port PCI Express Gen3 Switches PEX9700 Series Switch​

Product Description Of PEX9712-AA80BCG

PEX9712-AA80BCG: PEX9700 Series Switch Chips - 12-Lane, 5-Port Managed PCI Express Gen3 Switches Based on ExpressFabric® Technology.
PEX9712-AA80BCG: PEX9700 switches allow the Virtual Functions (VFs) of SRIOV endpoints to be shared and assigned to multiple hosts concurrently. Each host can enumerate its assigned functions using standard BIOS and OS software and use them with unmodified vendor-supplied drivers. The use of standard system software minimizes software support costs.

Specification Of PEX9712-AA80BCG

Part Number: PEX9712-AA80BCG
Series: PEX9700 Series
Ports: 5-Port
Lanes: 12-Lane
Latency : 158ns
Power Typ.: 3.5W
Package Size: 19mm x 19mm
Aggregate Bandwidth: 192GT (8.0 GT/s/Lane x 12 SerDes x2 (full-duplex))

Key Advantages Of PEX9712-AA80BCG
• PCI Express Switches
− 12 Lanes with Integrated on-chip SerDes
− 5 Independent ports
− Designate any Port as the Upstream Port
− Low-power SerDes (under 90mW per Lane)
− Device-Specific Relaxed Ordering
− Port configuration
− Dedicated management port for mCPU
− x4, x8, or x16, depending on Port configuration; x4 can down-train to x1 and x2 width
− Configurable through serial EEPROM, I2C, SMBus, and/or Host port

Applications Of PEX9712-AA80BCG
Products based on ExpressFabric technology can help deliver an outstanding solution for designing a heterogeneous system with a requirement for a flexible mix of processors, storage elements, and communication devices.
