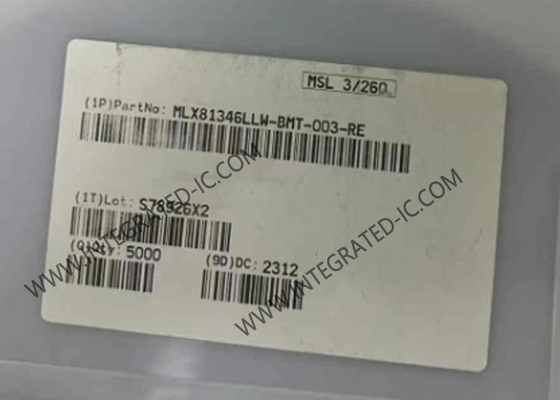

MLX81346LLW-BMT-003-RE Integrated Circuit Chip 90KB Flash Smart LIN Pre-Driver QFN-32

MLX81346LLW-BMT-003-RE Integrated Circuit Chip 90KB Flash Smart LIN Pre-Driver QFN-32

Product Description Of MLX81346LLW-BMT-003-RE

MLX81346LLW-BMT-003-RE: Smart LIN Pre-Driver for DC and BLDC motors <2000W.
MLX81346LLW-BMT-003-RE is a gen-3 LIN pre-driver for 12 V, 24 V and 48 V DC and BLDC motors targeting automotive mechatronic applications up to 1000 W (12 V) or up to 2000 W (48 V). It benefits from an extended memory of 90 KB.

Features Of MLX81346LLW-BMT-003-RE

LIN Motor driver
- 3x PreDriver for DC or BLDC motor
- Up to 200nC NFETs (12 - 48 V supply)
- 0.7 Apk typ. charge current
- 1.5 Apk typ. discharge current
- Charge-pump for top-NFETs
- VDS protection for all NFETs
Fast end-of-line programming via LIN pin (64 KB Flash in < 4sec)
Pin-compatible Pre-driver family QFN32
MLX81346: 90KB Flash+ROM
Periphery
- Configurable RC-clock 12...32MHz
- 12x general purpose IO's, digital, analog, 3x high-voltage IO's, 2x UART, SPI, I2C-slave
- 2x high-side supply <50mA
- 5x 16-bit motor PWM timers
- 2x 16-bit timers
- 12-bit ADC with < 1.2μs conversion time with 64 channels
- Differential current sense amplifier with 8-bit programmable overcurrent
- Temperature sensor, over-temperature detection
- Over-current detection, over-voltage and under-voltage protection
Bus interface
- LIN 2.x/SAE J2602 and ISO17987-4 compliant LIN slave
Automotive AEC-Q100 qualified
- Designed for safety applications according to ASIL B (ISO 26262)
- Maximum IC temperature (with validated mission profile) Tj = 175°C

MLX81346LLW-BMT-003-RE Pre-Driver Addresses Multiple Mechatronic Applications:
12V-48V DC/BLDC Engine Cooling Fans, Pumps, Compressors
12V-48V DC/BLDC Positioning Actuators, including Robotics
36V-48V BLDC e-bikes, e-scooters
