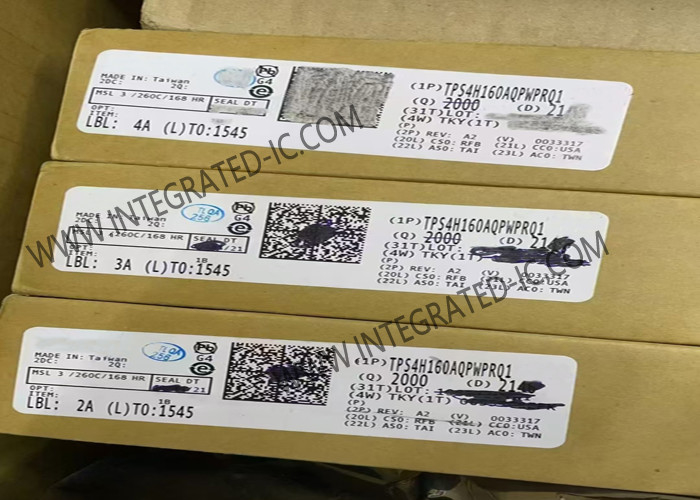

TPS4H160AQPWPRQ1 Integrated Circuit Chip 40V Quad-Channel Smart High-Side Switch IC

TPS4H160AQPWPRQ1 Integrated Circuit Chip 40V Quad-Channel Smart High-Side Switch IC

Product Description Of TPS4H160AQPWPRQ1

TPS4H160AQPWPRQ1 is fully protected quadchannel smart high-side switch with four integrated 160-mΩ NMOS power FETs.
TPS4H160AQPWPRQ1: Full diagnostics and high-accuracy current sense enable intelligent control of the load.
TPS4H160AQPWPRQ1: An external adjustable current limit improves the reliability of whole system by limiting the inrush or overload current.

Specification Of TPS4H160AQPWPRQ1

Features Of TPS4H160AQPWPRQ1

• Quad-Channel 160-mΩ Smart High-Side Switch With Full Diagnostics
– Version A: Open-Drain Digital Output
– Version B: Current-Sense Analog Output
• Wide Operating Voltage 3.4 V to 40 V
• Ultralow Standby Current, < 500 nA
• High-Accuracy Current Sense: ±15% Under >25-mA Load
• Adjustable Current Limit With External Resistor,
±15% Under >500 mA Load
• Protection
– Short-to-GND Protection by Current Limit (Internal or External)
– Thermal Shutdown With Latch Off Option and Thermal Swing
– Inductive Load Negative Voltage Clamp With Optimized Slew Rate
– Loss-of-GND and Loss-of-Battery Protection
• Diagnostics
– Overcurrent and Short-to-Ground Detection
– Open-Load and Short-to-Battery Detection
– Global Fault Report for Fast Interrupt
• 28-Pin Thermally-Enhanced PWP Package

Applications Of TPS4H160AQPWPRQ1

Multichannel LED Drivers, Bulb Drivers
Multichannel High-Side Switches for Sub-Modules
Multichannel High-Side Relay, Solenoid Drivers
PLC Digital Output Drivers
