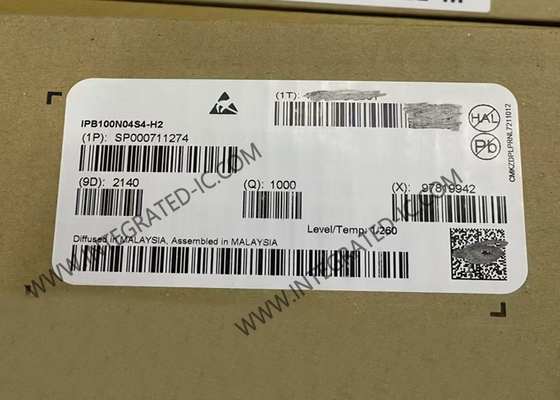

IPB100N04S4-H2 Integrated Circuit Chip 40V OptiMOS-T2 Automotive MOSFET Transistors

IPB100N04S4-H2 Integrated Circuit Chip 40V OptiMOS-T2 Automotive MOSFET Transistors
IPB100N04S4-H2 Integrated Circuit Chip 40V OptiMOS-T2 Automotive MOSFET Transistors
IPB100N04S4-H2 Integrated Circuit Chip 40V OptiMOS-T2 Automotive MOSFET Transistors IPB100N04S4-H2 Integrated Circuit Chip 40V OptiMOS-T2 Automotive MOSFET Transistors

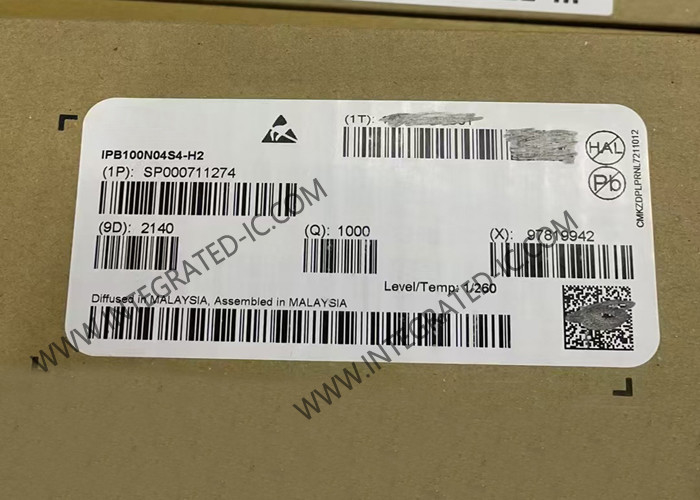

Large Image :  IPB100N04S4-H2 Integrated Circuit Chip 40V OptiMOS-T2 Automotive MOSFET Transistors

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: IPB100N04S4-H2
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: TO-263-3
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

IPB100N04S4-H2 Integrated Circuit Chip 40V OptiMOS-T2 Automotive MOSFET Transistors

Description
Part Number: IPB100N04S4-H2 Transistor Polarity: N-Channel
Vds - Drain-Source Breakdown Voltage: 40 V Id - Continuous Drain Current: 100 A
Rds On - Drain-Source Resistance: 2.1 MOhms Pd - Power Dissipation: 115 W

IPB100N04S4-H2 Integrated Circuit Chip 40V OptiMOS-T2 Automotive MOSFET Transistors​



Product Description Of IPB100N04S4-H2

IPB100N04S4-H2 is 40V, 2.4mΩ max, OptiMOS-T2 Automotive MOSFET Transistors.


Specification Of IPB100N04S4-H2

Series
OptiMOS™
FET Type
N-Channel
Technology
MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)
40 V
Current - Continuous Drain (Id) @ 25°C
100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)
10V
Rds On (Max) @ Id, Vgs
2.4mOhm @ 100A, 10V
Vgs(th) (Max) @ Id
4V @ 70µA
Gate Charge (Qg) (Max) @ Vgs
90 nC @ 10 V
Vgs (Max)
±20V
Input Capacitance (Ciss) (Max) @ Vds
7180 pF @ 25 V
Power Dissipation (Max)
115W (Tc)
Operating Temperature
-55°C ~ 175°C (TJ)
Mounting Type
Surface Mount
Supplier Device Package
PG-TO263-3-2
Package / Case
TO-263-3, D2PAK (2 Leads + Tab), TO-263AB


Features Of IPB100N04S4-H2

N-Channel - Enhancement mode
AEC qualified
MSL1 up to 260°C peak reflow
175°C operating temperature
Green Product (RoHS compliant)
100% Avalanche tested


Applications Of IPB100N04S4-H2

Electric power steering (EPS)
Light electric vehicles (LEV)
