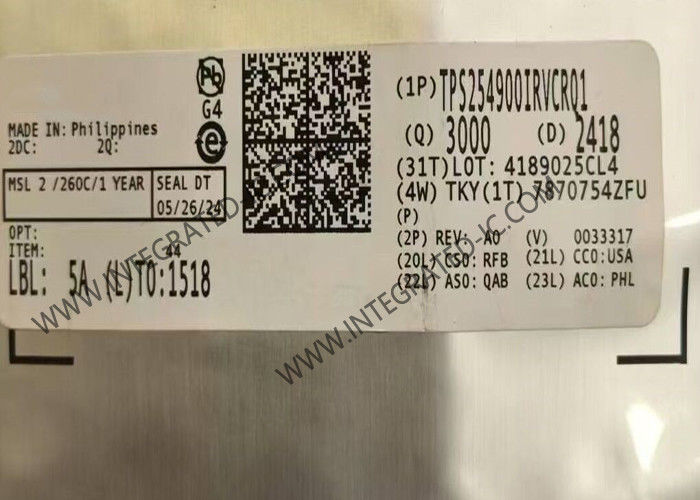

TPS254900IRVCRQ1 Integrated Circuit Chip Automotive USB Charge Port Controller WQFN-20

TPS254900IRVCRQ1 Integrated Circuit Chip Automotive USB Charge Port Controller WQFN-20

Product Description Of TPS254900IRVCRQ1

TPS254900IRVCRQ1 device is a USB charging-port controller and power switch with short-to-battery protection. This feature provides protection on OUT, DM_IN and DP_IN. These three pins withstand voltage up to 18 V. The internal MOSFET turns off quickly when the short-to-battery condition occurs. Rapid turnoff is very important to protect the upstream dc-dc converter, processor, or hub data lines.

TPS254900IRVCRQ1 45-mΩ power switch has two selectable, adjustable current limits that support port power management by changing to a lower current limit when adjacent ports are experiencing heavy loads. This is important in systems with multiple ports and upstream power supplies with limited capacity.

TPS254900IRVCRQ1 has a current-sense output that is able to control an upstream supply, which allows it to maintain 5 V at the USB port even with heavy charging currents. This feature is important in systems with long USB cables where significant voltage drops can occur with fast-charging portable devices.

Specification Of TPS254900IRVCRQ1

Features Of TPS254900IRVCRQ1

• AEC-Q100 Qualified With the Following Results:

• Device HBM ESD Classification Level H2

• Device CDM ESD Classification Level C5

• 4.5-V to 6.5-V Input Operating Range

• Integrated 45-mΩ (typ.) High-Side MOSFET

• 3-A Maximum Continuous Output Current

• VBUS ±5% Cable Compensation Accuracy at Connector

• Supports USB BC 1.2 CDP and SDP Modes

• Short-to-Battery Protection on OUT, DP_IN, and DM_IN Pins

• DP_IN and DM_IN IEC 61000-4-2 Rated

• ±8-kV Contact and ±15-kV Air Discharge

• 20-Pin QFN (3-mm × 4-mm) Package

Applications Of TPS254900IRVCRQ1

• Automotive USB Charging Ports (Host and Hubs)

• Automotive USB Protection
