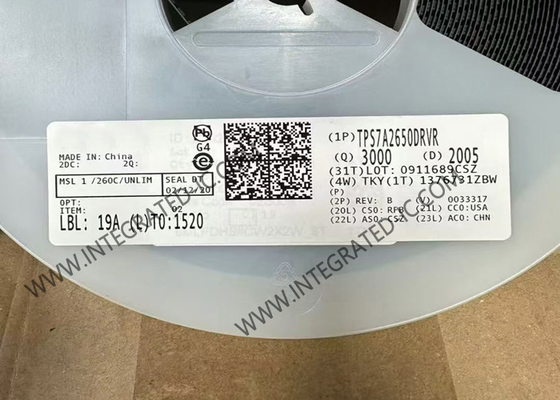

TPS7A2650DRVR Integrated Circuit Chip 500mA 18V Low-Dropout Linear Voltage Regulator With Power-Good

TPS7A2650DRVR Integrated Circuit Chip 500mA 18V Low-Dropout Linear Voltage Regulator With Power-Good

Product Description Of TPS7A2650DRVR

TPS7A2650DRVR low-dropout (LDO) linear voltage regulator supports a 2.4-V to 18-V input voltage range with very-low quiescent current (IQ). These features help modern appliances meet increasingly stringent energy requirements and help extend battery life in portable-power solutions.

TPS7A2650DRVR is available in both fixed and adjustable versions. For more flexibility or higher output voltages, the adjustable version uses feedback resistors to set the output voltage from 1.24 V to 17.4 V. Both versions have 1% output regulation accuracy that provides precision regulation for microcontroller (MCU) references.

Specification Of TPS7A2650DRVR

Features Of TPS7A2650DRVR

• Ultra-low IQ: 2.0 µA

• Input voltage: 2.4 V to 18 V

• Output voltage options available:

• Fixed: 1.25 V to 5.5 V

• Adjustable: 1.24 V to 17.4 V

• 1% accuracy over temperature

• Low dropout: 590 mV (max) at 500 mA

• Open-drain, power-good output

• Active overshoot pulldown protection

• Thermal shutdown and overcurrent protection

• Operating junction temperature: –40°C to +125°C

• Stable with 1-µF output capacitors

• Package: 6-pin WSON

Applications Of TPS7A2650DRVR

• Home and building automation

• Multicell power banks

• Smart grid and metering

• Portable power tools

• Motor drives

• White goods

• Portable appliances
