LT3060EDC-3.3 Integrated Circuit Chip LDO Linear Regulators 45V Positive Linear Regulators

LT3060EDC-3.3 Integrated Circuit Chip LDO Linear Regulators 45V Positive Linear Regulators
LT3060EDC-3.3 Integrated Circuit Chip LDO Linear Regulators 45V Positive Linear Regulators

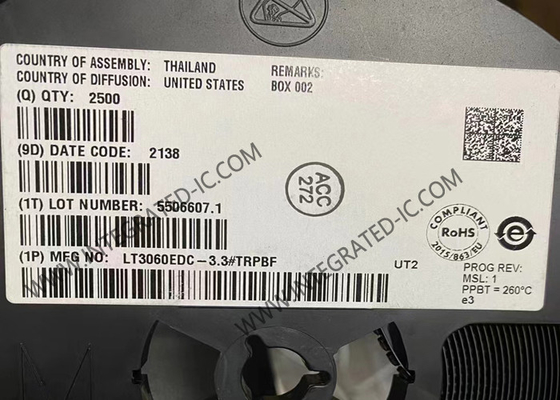

Large Image :  LT3060EDC-3.3 Integrated Circuit Chip LDO Linear Regulators 45V Positive Linear Regulators

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: LT3060EDC-3.3
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: DFN-8
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union

LT3060EDC-3.3 Integrated Circuit Chip LDO Linear Regulators 45V Positive Linear Regulators

Description
Part Number: LT3060EDC-3.3 Voltage - Input (Max): 45V
Voltage - Output (Min/Fixed): 3.3V Voltage Dropout (Max): 0.51V @ 100mA
Current - Output: 100mA Operating Temperature: -40°C ~ 125°C

LT3060EDC-3.3 Integrated Circuit Chip LDO Linear Regulators 45V Positive Linear Regulators



Product Description Of LT3060EDC-3.3

LT3060EDC-3.3 is micropower, low dropout voltage (LDO) linear regulators that operate over a 1.6V to 45V input supply range. The devices supply 100mA of output current with a typical dropout voltage of 300mV. A single external capacitor provides programmable low noise reference performance and output soft-start functionality.

LT3060EDC-3.3’s quiescent current is merely 40μA and provides fast transient response with a minimum 2.2μF output capacitor. In shutdown, quiescent current is less than 1μA and the reference soft-start capacitor is reset.

LT3060EDC-3.3 regulators optimize stability and transient response with low ESR, ceramic output capacitors. The regulators do not require the addition of ESR as is common with other regulators.


Specification Of LT3060EDC-3.3

Part Number: LT3060EDC-3.3
Product Category: LDO Voltage Regulators
SMD/SMT
DFN-8
3.3 V
100 mA
1 Output
40 uA
1.6 V
45 V
85 dB
Fixed
- 40 C
+ 125 C
300 mV
Dropout Voltage - Max: 350 mV
Line Regulation: 1.3 mV
Load Regulation: 3.1 mV
Operating Supply Current: 40 uA


Features Of LT3060EDC-3.3

  • Input Voltage Range: 1.6V to 45V
  • Output Current: 100mA
  • Quiescent Current: 40μA
  • Dropout Voltage: 300mV
  • Low Noise: 30μVRMS (10Hz to 100kHz)
  • Adjustable Output: VREF = 600mV
  • Fixed Output Voltages: 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5V, 15V
  • Output Tolerance: ±2% Over Line, Load and Temperature
  • Single Capacitor Soft-Starts Reference and Lowers Output Noise
  • Shutdown Current: < 1μA
  • Reverse Battery Protection
  • Current Limit Foldback Protection
  • Thermal Limit Protection
  • 8-Lead 2mm × 2mm × 0.75mm DFN and 8-Lead ThinSOT™ Packages


Applications Of LT3060EDC-3.3

  • Battery-Powered Systems
  • Automotive Power Supplies
  • Industrial Power Supplies
  • Avionic Power Supplies
  • Portable Instruments
