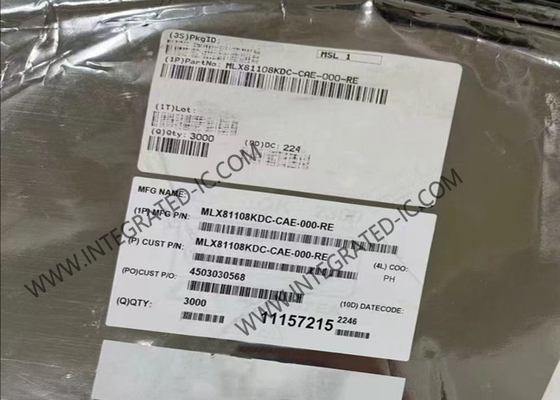

MLX81108KDC-CAE-000-RE Integrated Circuit Chip Single Channel LIN RGB Slave Ambient Light Controller
Product Description Of MLX81108KDC-CAE-000-RE
MLX81108KDC-CAE-000-RE LIN RGB slave provides a single chip IC solution for driving up to four LEDs (RGB+1) via constant current sources in automotive ambient lighting applications. Every output can be programmed to a maximum current of 35 mA through the built-in Flash memory.
All necessary components like physical layer LIN transceiver, LIN controller, voltage regulator and 16-bit RISC-based microcontroller, as well as supporting functions like ADC, 16-bit current modulation, constant current high voltage capable outputs and LED color and aging compensation are integrated into the chip.
It also includes the possibility for LIN auto-configuration and can thus be used for other applications requiring a low pin count fully integrated LIN slave. The LIN protocol handler meets all LIN standards including LIN2.x, as well as SAE J2602.
To support a high thermal performance by keeping the low cost target, our MLX81108 is offered in a thermally enhanced SOIC8 package.
Features Of MLX81108KDC-CAE-000-RE
16-bit RISC MCU with 32kB Flash memory, RAM, EEPROM with ECC
Internal RC-Oscillator
Co-processor for MUL and DIV operations
LIN Protocol Controller according to LIN 2.x and SAE J2602
Low interrupt load to the application
LIN Transceiver according to LIN 2.x and SAE J2602
Support for autoconfig according bus shunt
Support of MiLoc autoconfig system
4 programmable constant current (35mA)/high voltage capable IOs
16-bit current modulation outputs
Interrupt capable inputs
10-bit ADC with integrated pre-divider connected to all IOs
Internal Battery and reference voltage monitor
LED colour compensation as well as aging compensation
Automotive temperature range of -40°C to 125°C
SOIC8 thermally enhanced package
