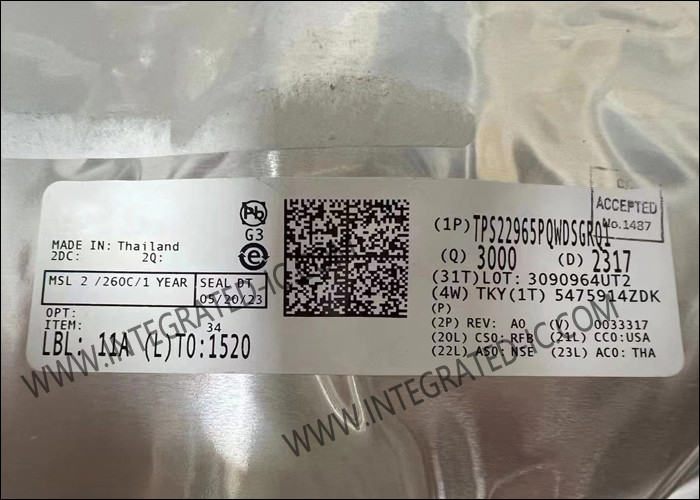

TPS22965PQWDSGRQ1 Integrated Circuit Chip 5.7V Automotive Load Switches 4A Power Switches
Product Description Of TPS22965PQWDSGRQ1
TPS22965PQWDSGRQ1 is a small, ultra-low-RON, single-channel load switch with controlled turn-on.
TPS22965PQWDSGRQ1 contains an N-channel MOSFET that can operate over an input voltage range of 0.8 V to 5.5 V and can support a maximum continuous current of 4 A. The VOUT rise time is configurable so that inrush current can be reduced.
TPS22965PQWDSGRQ1 include a 225-Ω on-chip load resistor for quick output discharge when the switch is turned off.
Specification Of TPS22965PQWDSGRQ1
Number of channels: 1
Vin (min): 0.8V
Vin (max) : 6V
Imax: 4A
Ron (typ): 16mΩ
Shutdown current (ISD) (typ): 0.2µA
Quiescent current (Iq) (typ): 50µA
Features: Quick output discharge
Rating: Automotive
Operating temperature range: -40°C to 125°C
FET: Internal
Device type: Load switches
Function : nrush current control
Features Of TPS22965PQWDSGRQ1
Integrated single channel load switch
Input voltage range: 0.8 V to 5.5 V
Ultra-low on resistance (RON)
RON = 16 mΩ at VIN = 5 V (VBIAS = 5 V)
RON = 16 mΩ at VIN = 3.6 V (VBIAS = 5 V)
RON = 16 mΩ at VIN = 1.8 V (VBIAS = 5 V)
4-A maximum continuous switch current
Low quiescent current (50 µA)
Low control input threshold enables use of 1.2-, 1.8-, 2.5- and 3.3-V logic
Configurable rise time
Quick Output Discharge (QOD)
WSON 8-pin package with thermal pad
Applications Of TPS22965PQWDSGRQ1
Automotive electronics
• Infotainment
• ADAS (Advanced Driver Assistance Systems)
