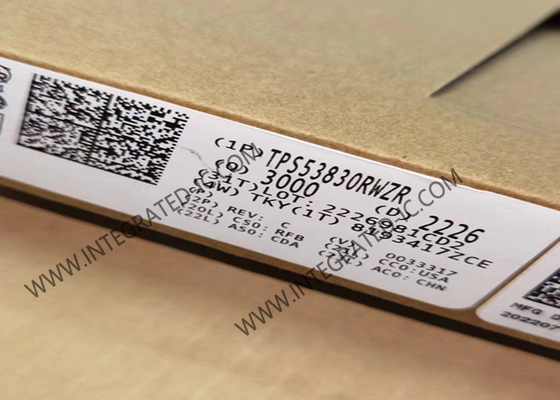

TPS53830RWZR Integrated Circuit Chip High Current PMIC For DDR5 Server DIMMs VQFN-35
TPS53830RWZR Integrated Circuit Chip High Current PMIC For DDR5 Server DIMMs VQFN-35
Description
Part Number:
TPS53830RWZR
Output Current::
6 A
Input Voltage - Max::
15 V
Input Voltage - Min::
4.5 V
Minimum Operating Temperature::
- 40 C
Maximum Operating Temperature::
+ 105 C
Highlight:
TPS53830RWZR
,
TPS53830RWZR Integrated Circuit Chip
,
High Current PMIC For DDR5 Server
TPS53830RWZR Integrated Circuit Chip High Current PMIC For DDR5 Server DIMMs VQFN-35
Product Description Of TPS53830RWZR
TPS53830RWZR is D-CAP+™ mode integrated step-down converter for DDR5 on-DIMM power supply. It provides VDD, VDDQ and VPP voltages to the DRAM chips on the DIMM module with configurable current capability. The high-current rail can be configured to 2-phase or 2 outputs to supply up to 12 A (or 6 A + 6 A) current with D-CAP+™ mode control. The converter also employs internal compensation for ease of use and reduce external components.
Specification Of TPS53830RWZR
6 A
15 V
4.5 V
- 40 C
+ 105 C
Input Voltage Range:
4.5 V to 15 V
Features Of TPS53830RWZR
Single silicon design to support DDR5 applications
3 Outputs to Supply VDD (1.1V), VDDQ (1.1V) and VPP (1.8V), with optional 4th Output (VDD2)
For 3 outputs, 12 A for VDD(SWA Dual Phase), 6 A for VDDQ(SWC) and 5 A for VPP(SWD) with 3 outputs
For 4 outputs, 6 A for VDD1(SWA), 6 A for VDD2(SWB), 6 A for VDDQ(SWC), and 5 A for VPP(SWD)
Differential remote sense: VDD, VDDQ, and VPP
D-CAP+™ control for fast transient response
Wide input voltage: 4.5 V to 15 V
Programmable internal loop compensation
Per-phase cycle-by-cycle current limit
Programmable frequency: 500 kHz to 1.375 MHz
Support I2C and I3C Bus Interface for telemetry of voltage, current, power, temperature, and fault conditions
Over-current, Over-voltage, Over-temperature protections
Persistent register (black box) feature
Low quiescent current
5 mm × 5 mm, 35-Pin, QFN PowerPad™ Package
Applications Of TPS53830RWZR
DDR5 On-DIMM Power Supply for Server
