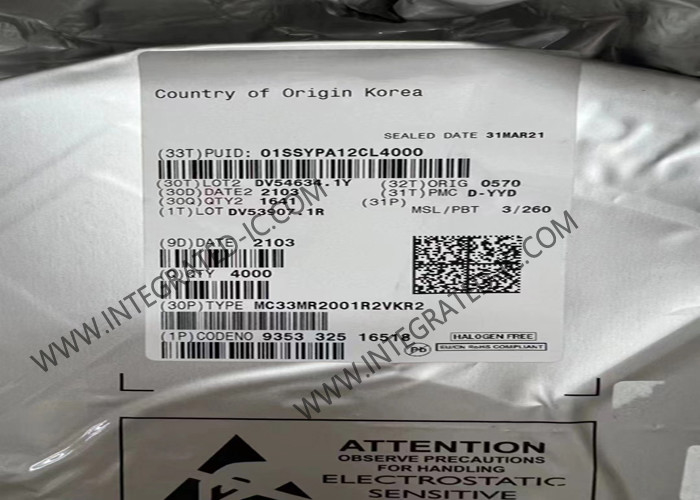

MC33MR2001R2VKR2 Wireless Communication Module 76GHz -77GHz RF Receiver Front-End
Product Description Of MC33MR2001R2VKR2
MC33MR2001R2VKR2: 76GHz -77GHz RF Receiver Front-End For W-Band Radar Applications, package is 6.0mm x 6.0mm RCPBGA (10 x 11 array), 0.5mm pitch.
MC33MR2001R2VKR2 is an expandable three package solution for automotive radar modules. The chipset consists of a VCO (voltage controlled oscillator), a two-channel Tx transmitter, and a three-channel Rx receiver.
MC33MR2001R2VKR2 is a high performance, highly integrated, three-channel, receiver (RX) ideally suited for automotive radar applications. In conjunction with the MR2001V, a four-channel voltage controlled oscillator, and an MR2001T, a two-channel transmitter, it provides an expandable three package solution for automotive radar modules.
Specification Of MC33MR2001R2VKR2
| Part Number: |
MC33MR2001R2VKR2 |
TX Channels: |
4 |
| RX Channels: |
12 |
Size: |
6.0mm X 6.0mm |
| Best Phase Noise At 100 KHz Offset: |
< -75 DBc/Hz |
Temperature (temp): |
-40°C To 125°C |
Features Of MC33MR2001R2VKR2
• Scalable to 4 TX channels and 12 RX channels
• Advanced packaging technology
• High performance supports fast modulation with simultaneous active channels
• Excellent spatial resolution and detection accuracy
• Local oscillator at 38 GHz to lower the distribution loss and reduce impact on antenna pattern
• Best phase noise < -75 dBc/Hz at 100 kHz offset
• Low power consumption of 2.5 W for the total transceiver
• Integrated system level calibration when combined with Qorivva MPC577xK MCU
• Compatible with all leading MCUs
• Optimized for the NXP Qorivva MPC577xK MCU
• Scalable approach to support SRR, MRR and LRR applications
• Reduced number of external components due to higher integration level
• Baseband integration on receiver suitable to work with the MPC577xK Qorivva MCU
• Bi-phase modulator on the transmitter chip
Applications Of MC33MR2001R2VKR2
• Automotive proximity radar
• LRR, MRR and SRR
• ADAS
• Industrial surveillance and security systems
