IRFH5215TRPBF Integrated Circuit Chip 150V StrongIRFET™ Power MOSFET Transistors

IRFH5215TRPBF Integrated Circuit Chip 150V StrongIRFET™ Power MOSFET Transistors
IRFH5215TRPBF Integrated Circuit Chip 150V StrongIRFET™ Power MOSFET Transistors
IRFH5215TRPBF Integrated Circuit Chip 150V StrongIRFET™ Power MOSFET Transistors IRFH5215TRPBF Integrated Circuit Chip 150V StrongIRFET™ Power MOSFET Transistors

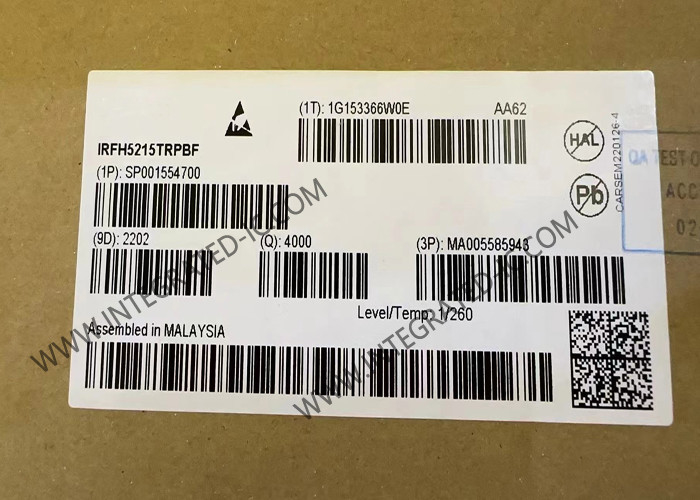

Large Image :  IRFH5215TRPBF Integrated Circuit Chip 150V StrongIRFET™ Power MOSFET Transistors

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: IRFH5215TRPBF
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: PQFN-8
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

IRFH5215TRPBF Integrated Circuit Chip 150V StrongIRFET™ Power MOSFET Transistors

Description
Part Number: IRFH5215TRPBF Transistor Polarity: N-Channel
Vds - Drain-Source Breakdown Voltage: 150 V Id - Continuous Drain Current: 27 A
Rds On - Drain-Source Resistance: 58 MOhms Qg - Gate Charge: 21 NC

IRFH5215TRPBF Integrated Circuit Chip 150V StrongIRFET™ Power MOSFET Transistors​



Product Description Of IRFH5215TRPBF

IRFH5215TRPBF is 150V Single N-Channel StrongIRFET™ Power MOSFET Transistors in a PQFN 5x6 package.

IRFH5215TRPBF - The StrongIRFET™ power MOSFET family is optimized for low RDS(on) and high current capability. The devices are ideal for low frequency applications requiring performance and ruggedness. The comprehensive portfolio addresses a broad range of applications including DC motors, battery management systems, inverters, and DC-DC converters.


Specification Of IRFH5215TRPBF

FET Type
N-Channel
Technology
MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)
150 V
Current - Continuous Drain (Id) @ 25°C
5A (Ta), 27A (Tc)
Drive Voltage (Max Rds On, Min Rds On)
10V
Rds On (Max) @ Id, Vgs
58mOhm @ 16A, 10V
Vgs(th) (Max) @ Id
5V @ 100µA
Gate Charge (Qg) (Max) @ Vgs
32 nC @ 10 V
Vgs (Max)
±20V
Input Capacitance (Ciss) (Max) @ Vds
1350 pF @ 50 V
Power Dissipation (Max)
3.6W (Ta), 104W (Tc)
Operating Temperature
-55°C ~ 150°C (TJ)
Mounting Type
Surface Mount
Supplier Device Package
PQFN (5x6)
Package / Case
8-VQFN Exposed Pad


Features Of IRFH5215TRPBF

Industry standard surface-mount power package
Product qualification according to JEDEC standard
Silicon optimized for applications switching below <100 kHz
Softer body-diode compared to previous silicon generation
Wide portfolio available


Applications Of IRFH5215TRPBF

SMPS
UPS
Solar power inverter
DC motor drives
Battery powered applications
