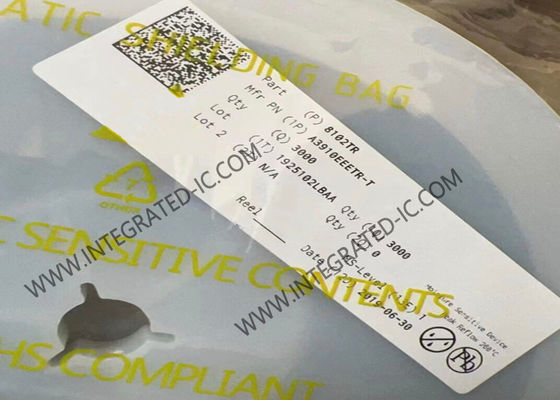

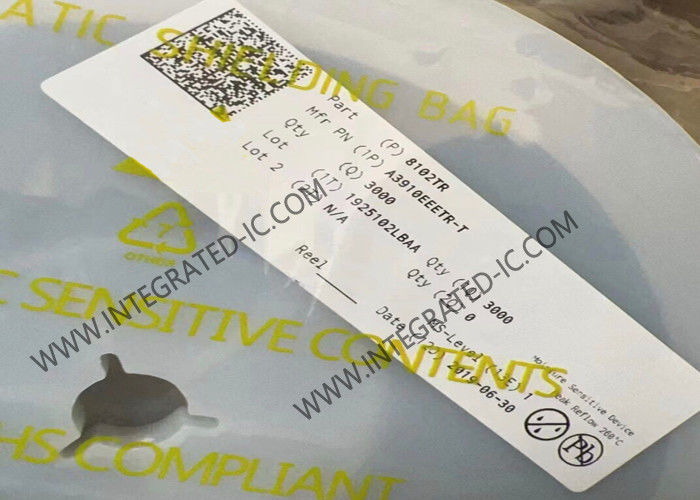

A3910EEETR Integrated Circuit Chip Dual Half Bridge Motor Driver DFN-8

A3910EEETR Integrated Circuit Chip Dual Half Bridge Motor Driver DFN-8

Product Description Of A3910EEETR
A3910EEETR is a dual half bridge motor driver, designed for low cost, low voltage battery operated power applications. The outputs are rated for operation up to 500 mA.
Direct control of high- and low-side drivers is implemented to allow either high-side or low-side PWM. The motor can be connected to either supply or GND. Using a MOS switch results in improved braking action for the motor, compared to implementation with simple clamp diode.
The A3910EEETR is supplied in a 2 mm × 2 mm 8-contact DFN package (EE) with exposed thermal pad. The package is lead (Pb) free, with 100% matte tin leadframe plating

Specifications Of A3910EEETR

Features Of A3910EEETR
Low RDS(on) outputs
Standby mode with zero current drain
Small 2 × 2 DFN package
Crossover Current protection
Thermal Shutdown protection

Other Electronic Components In Stock

FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
