Product Details:
|
Part Number: | PCM5242RHBR | Sampling Rate:: | 384 KS/s |
---|---|---|---|
SNR - Signal To Noise Ratio:: | 114 DB | Minimum Operating Temperature:: | - 25 C |
Maximum Operating Temperature:: | + 85 C | Unit Weight:: | 67.600 Mg |

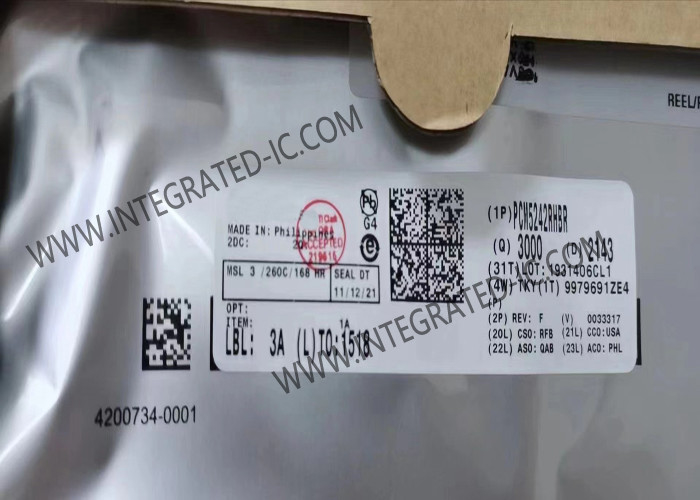

PCM5242RHBR Integrated Circuit Chip 32-Bit 384KHz 114dB Audio Stereo DAC VQFN-32
Product Description Of PCM5242RHBR
PCM5242RHBR is a monolithic CMOS integrated circuit that includes a stereo digital-to-analog converter and additional support circuitry in a small QFN package. PCM5242RHBR uses the latest generation of TI’s advanced segment-DAC architecture to achieve excellent dynamic performance and improved tolerance to clock jitter.
Specifications Of PCM5242RHBR
|
384 kS/s |
|
VQFN-32 |
|
114 dB |
|
- 25 C |
|
+ 85 C |
Features Of PCM5242RHBR
Differential DirectPath™ Ground Biased Outputs
Market-Leading Low Out-of-Band Noise
Selectable Digital-Filter Latency and Performance
No DC Blocking Capacitors Required
Integrated Negative Charge Pump
Intelligent Muting System; Soft Up or Down Ramp and
Analog Mute for 120dB Mute SNR
Integrated High-Performance Audio PLL With BCK
Reference to Generate SCK Internally
Accepts 16-, 24-, and 32-Bit Audio Data
PCM Data Formats: I2S, Left-Justified
SPI or I2C Control
Hardware Configuration
Automatic Power-Save Mode When LRCK And BCK
Are Deactivated
1.8V or 3.3V Failsafe LVCMOS Digital Inputs
Single Supply Operation:
3.3V Analog, 1.8V or 3.3V Digital
Integrated Power-On Reset
Small 32-terminal QFN Package
Applications Of PCM5242RHBR
HiFi Smartphone
A/V Receivers
DVD, BD Players
HDTV Receivers
