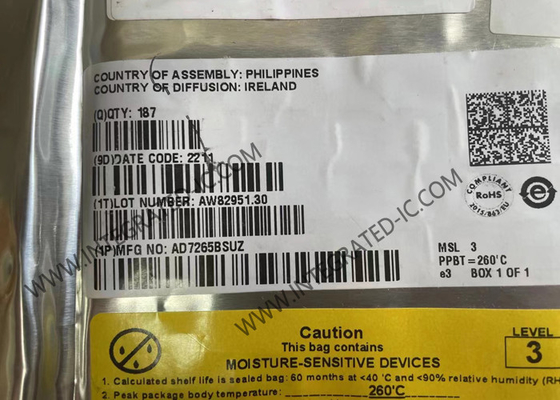

AD7265BSUZ Integrated Circuit Chip 12-Bit ADC Converters TQFP-32 3-Channel SAR ADC

AD7265BSUZ Integrated Circuit Chip 12-Bit ADC Converters TQFP-32 3-Channel SAR ADC​

Product Description Of AD7265BSUZ

AD7265BSUZ is a dual, 12-bit, high speed, low power, successive approximation ADC that operates from a single 2.7V to 5.25V power supply and features throughput rates of up to 1MSPS.

AD7265BSUZ contains two ADCs, each preceded by a 3-channel multiplexer, and a low noise, wide bandwidth track-and-hold amplifier that can handle input frequencies in excess of 30MHz.

Specification Of AD7265BSUZ

Features Of AD7265BSUZ

Dual 12-bit, 3-channel ADC
Throughput rate: 1 MSPS
Specified for VDD of 2.7 V to 5.25 V
Power consumption
- 7 mW at 1 MSPS with 3 V supplies
- 17 mW at 1 MSPS with 5 V supplies
Pin-configurable analog inputs
- 12-channel single-ended inputs
- 6-channel fully differential inputs
- 6-channel pseudo differential inputs
70 dB SINAD at 50 kHz input frequency
Accurate on-chip reference: 2.5 V
- ±0.2% maximum at 25°C, 20 ppm/°C maximum
Dual conversion with read 875 ns, 16 MHz SCLK
High speed serial interface
- SPI®-/QSPI™-/MICROWIRE™-/DSP-compatible
−40°C to +125°C operation
Shutdown mode: 1 µA maximum
Package: 32-lead TQFP
