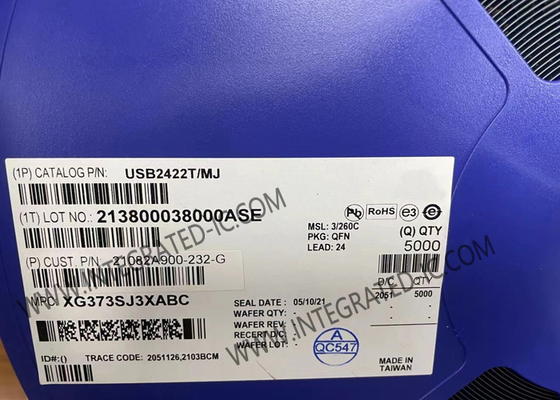

USB2422T/MJ Integrated Circuit Chip 2-Port USB 2.0 Hi-Speed Hub Controller QFN-24

USB2422T/MJ Integrated Circuit Chip 2-Port USB 2.0 Hi-Speed Hub Controller QFN-24​

Product Description Of USB2422T/MJ

USB2422T/MJ is a low-power, single transaction translator, hub controller IC with two downstream ports for embedded USB solutions.

Specification Of USB2422T/MJ

Features Of USB2422T/MJ

High performance, low-power, small footprint hub controller IC with two downstream ports
Fully compliant with the USB 2.0 Specification
Optimized for minimal bill-of-materials and low-cost designs
Supports the USB Battery Charging Specification, Revision 1.1
Fully integrated USB termination and pull-up/pulldown resistors
Supports a single external 3.3 V supply source; internal regulators provide 1.2 V internal core voltage
On-chip driver for 24 MHz crystal resonator or external 24 MHz clock input
ESD protection up to 6 kV on all USB pins
Supports self-powered operation
Microchip hub contains a built-in default configuration; no external configuration options or components are required
Downstream ports as non-removable ports
Downstream port power control and over-current detection on an individual or ganged basis
Supports compound devices on a port-by-port basis
24-pin SQFN (4x4 mm), RoHS-compliant package
Commercial temperature range support: 0ºC to +70ºC
Industrial temperature range support: -40ºC to +85ºC

Applications Of USB2422T/MJ

LCD Monitors and TVs
Multi-function USB Peripherals
PC motherboards
Set-top boxes, DVD players, DVR/PVR
Printers and scanners
PC media drive bay
Portable hub boxes
Embedded systems
Gaming consoles
Cable/DSL modems
HDD enclosures
Automobile/home audio systems
