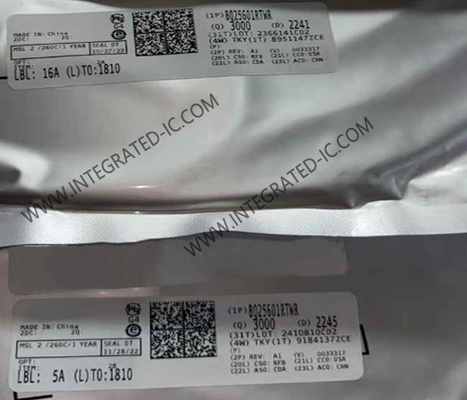

BQ25601RTWR Integrated Circuit Chip I2C Controlled 1-Cell 3A Buck Battery Charger

BQ25601RTWR Integrated Circuit Chip I2C Controlled 1-Cell 3A Buck Battery Charger​

Product Description Of BQ25601RTWR

BQ25601RTWR is a highly-integrated 3-A switch-mode battery charge management and system power path management device for single cell Li-ion and Li-polymer batteries. The low impedance power path optimizes switch-mode operation efficiency, reduces battery charging time, and extends battery life during discharging phase. The I 2C serial interface with charging and system settings makes the device a truly flexible solution.

BQ25601RTWR feature s fast charging with high input voltage support for a wide range of smartphones, tablets and portable devices. Its input voltage and current regulation deliver maximum charging power to the battery. It also integrates a bootstrap diode for the high-side gate drive for simplified system design. The I 2C serial interface with charging and system settings makes the device a truly flexible solution.

Specification Of BQ25601RTWR

Features Of BQ25601RTWR

High-efficiency, 1.5-MHz, synchronous switch-mode buck charger
- 92% charge efficiency at 2-A from 5-V input
- Optimized for USB voltage input (5 V)
- Selectable low power pulse frequency modulation (PFM) mode for light load operations
Supports USB On-The-Go (OTG)
- Boost converter with up to 1.2-A output
- 92% boost efficiency at 1-A output
- Accurate constant current (CC) limit
- Soft-start up to 500-µF capacitive load
- Output short circuit protection
- Low power PFM mode for light load operations
Single input to support USB input and high voltage adapters
- Support 3.9-V to 13.5-V input voltage range with 22-V absolute maximum input voltage rating
- Programmable input current limit (100 mA to 3.2 A with 100-mA resolution) to support USB 2.0, USB 3.0 standards and high voltage adaptors (IINDPM)
- Maximum power tracking by input voltage limit up to 5.4 V (VINDPM)
- VINDPM threshold automatically tracks battery voltage
- Auto detect USB SDP, DCP and non-standard adaptors
High battery discharge efficiency with 19.5-mΩ battery discharge MOSFET
Narrow VDC (NVDC) power path management
- Instant-on works with no battery or deeply discharged battery
- Ideal diode operation in battery supplement mode
BATFET control to support ship mode, wake up and full system reset
Flexible autonomous and I 2C mode for optimal system performance
High integration includes all MOSFETs, current sensing and loop compensation
High accuracy
- ±0.5% charge voltage regulation
- ±5% at 1.5-A charge current regulation


Applications Of BQ25601RTWR
Smartphone
Mobile phone accessory
Medical equipment
