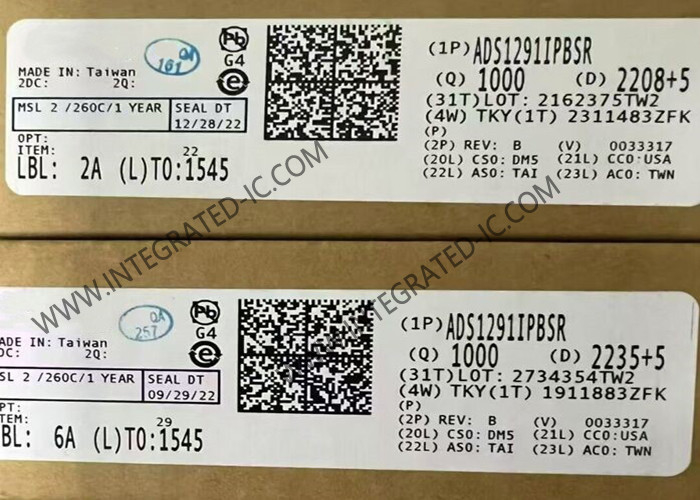

ADS1291IPBSR Integrated Circuit Chip 24-Bit Analog Front End For ECG Applications

ADS1291IPBSR Integrated Circuit Chip 24-Bit Analog Front End For ECG Applications​

Product Description Of ADS1291IPBSR

ADS1291IPBSR is single channel, simultaneous sampling, 24-bit, delta-sigma (ΔΣ) analog-to-digital converters (ADCs) with a built-in programmable gain amplifier (PGA), internal reference, and an onboard oscillator.

ADS1291IPBSR incorporate all features commonly required in portable, low-power medical electrocardiogram (ECG), sports, and fitness applications.

Specification Of ADS1291IPBSR

Features Of ADS1291IPBSR

• Two low-noise PGAs and two high-resolution ADCs
• Low power: 335 μW/channel
• Input-referred noise: 8 μVPP (150-Hz BW, G = 6)
• Input bias current: 200 pA
• Data rate: 125 SPS to 8 kSPS
• CMRR: 120 dB
• Programmable gain: 1, 2, 3, 4, 6, 8, or 12
• Supplies: unipolar or bipolar
– Analog: 2.7 V to 5.25 V
– Digital: 1.7 V to 3.6 V
• Built-in right leg drive amplifier, lead-off detection, test signals
• Built-in oscillator and reference
• Flexible power-down, standby mode
• SPI™-compatible serial interface
• Operating temperature range: –40°C to +85°C

Applications Of ADS1291IPBSR
• Medical instrumentation (ECG) including:
– Patient monitoring: Holter, event, stress, and vital signs including ECG, AED, and telemedicine
– Personal care and fitness monitors (heart rate, respiration, and ECG)
• High-precision, simultaneous, multichannel data acquisition
