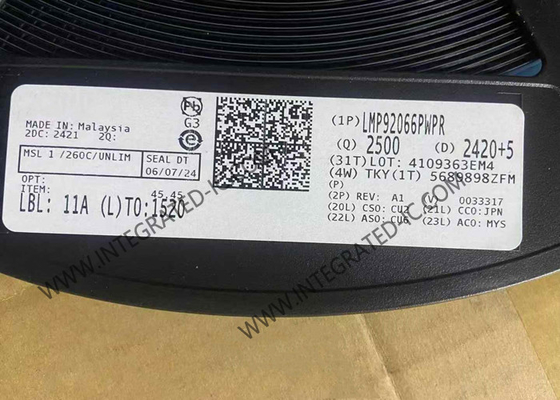

LMP92066PWPR Integrated Circuit Chip Dual Temperature Controlled Digital To Analog Converters

LMP92066PWPR Integrated Circuit Chip Dual Temperature Controlled Digital To Analog Converters

Product Description Of LMP92066PWPR
LMP92066PWPR is a highly integrated temperature-controlled dual DAC. Both DACs can be programmed by two independent, user-defined, temperature-to-voltage transfer functions stored in the internal EEPROM, allowing any temperature effects to be corrected without additional external circuitry. Once powered up, the device operates autonomously, without intervention from the system controller, to provide a complete solution for setting and compensating bias voltages and currents in control applications.

Specification Of LMP92066PWPR

Feature Of LMP92066PWPR
Internal 12-Bit Temperature Sensor
Accuracy (–40°C to 120°C), ±3.2°C
Two Independent Transfer Functions Stored in EEPROM
Dual-Analog Output
Two 12-Bit
Output Range 0 V to 5 V or 0 V to –5 V
High-Capacitive Load Tolerant, up to 10 µF
Post-Calibration Accuracy ±2.4 mV (typical)
Output On/Off Control Switching Time 50 ns
Switching Time 50 ns (typical)
RDSON 5 Ω (maximum)
I2C Interface: Standard and Fast
Nine Selectable Slave Addresses
TIMEOUT Function
VDD Supply Range 4.75 V to 5.25 V
VIO Range 1.65 V to 3.6 V
Specified Temperature Range –25°C to 120°C
Operating Temperature Range –40°C to 125°C

Applications Of LMP92066PWPR
GaN or LDMOS PA Bias Controller
Sensor Temperature Compensation
Timing Circuit Temperature Compensation
