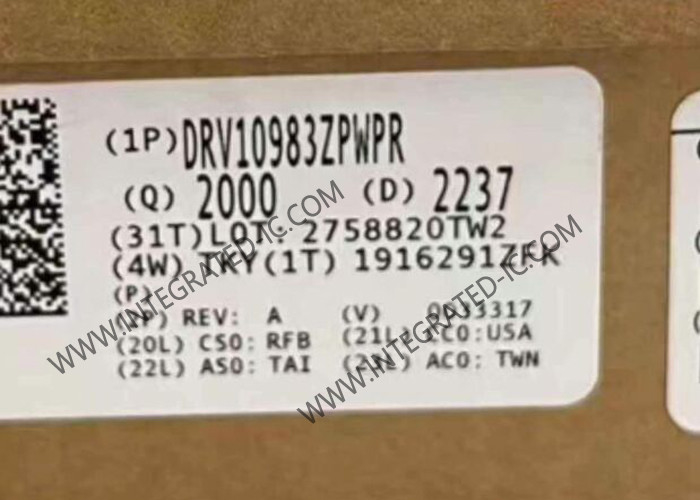

DRV10983ZPWPR Integrated Circuit Chip 24V 3A 3-Phase BLDC Motor Driver

DRV10983ZPWPR Integrated Circuit Chip 24V 3A 3-Phase BLDC Motor Driver

Product Description Of DRV10983ZPWPR
DRV10983ZPWPR device is a three-phase sensorless motor driver with integrated power MOSFETs, which can provide continuous drive current up to 2 A. The device is specifically designed for cost-sensitive, low-noise, low-external-component-count applications.

Specifications Of DRV10983ZPWPR

Feature Of DRV10983ZPWPR
Input Voltage Range: 8 to 28 V
Total Driver H + L rDS(on): 250 mΩ
Drive Current: 2-A Continuous Winding Current (3-A Peak)
Sensorless Proprietary Back Electromotive Force (BEMF) Control Scheme
Continuous Sinusoidal 180° Commutation
No External Sense Resistor Required
For Flexibility User May Include External Sense Resistor to Monitor Power Delivered to Motor
Flexible User Interface Options:
I2C Interface: Access Registers for Command and Feedback
Dedicated SPEED Pin: Accepts Either Analog or PWM Input
Dedicated FG Pin: Provides TACH Feedback
Spin-Up Profile Customizable With EEPROM
Forward-Reverse Control With DIR Pin
Integrated Step-Down Regulator to Efficiently Provide Voltage (5 V or 3.3 V) for Internal and External Circuits
Supply Current 3 mA With Standby Version (DRV10983)
Supply Current 180 µA With Sleep Version (DRV10983Z)
Overcurrent Protection
Lock Detection
Voltage Surge Protection
UVLO Protection
Thermal Shutdown Protection
Thermally-Enhanced 24-Pin HTSSOP

Applications Of DRV10983ZPWPR
Appliance Fan
HVAC
