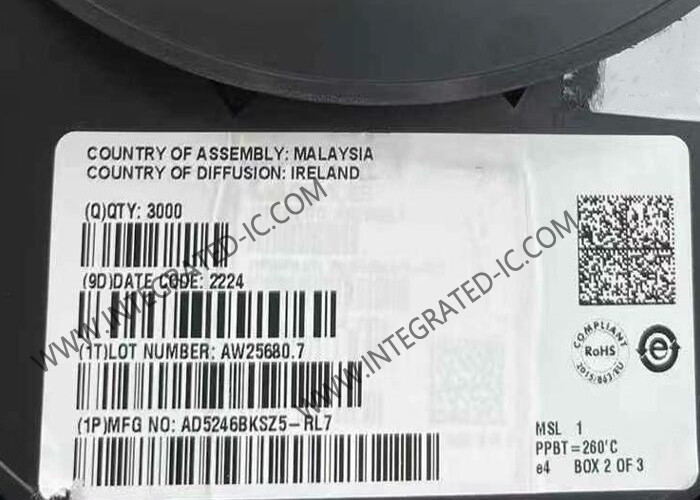

AD5246BKSZ5 Integrated Circuit Chip Digital Potentiometers SC70-6 128Position DigiPOT

AD5246BKSZ5 Integrated Circuit Chip Digital Potentiometers SC70-6 128Position DigiPOT

Product Description Of AD5246BKSZ5

AD5246BKSZ5 provides a compact 2 mm × 2.1 mm packaged solution for 128-position adjustment applications. This device performs the same electronic adjustment function as a variable resistor. Available in four different end-to-end resistance values (5 kΩ, 10 kΩ, 50 kΩ, 100 kΩ), these low temperature coefficient devices are ideal for high accuracy and stability variable resistance adjustments.

AD5246BKSZ5——The wiper settings are controllable through the I2C compatible digital interface, which can also be used to read back the present wiper register control word. The resistance between the wiper and either end point of the fixed resistor varies linearly with respect to the digital code transferred into the RDAC latch.

AD5246BKSZ5 Operating from a 2.7 V to 5.5 V power supply and consuming 3 μA allows for usage in portable battery-operated applications.

Specification Of AD5246BKSZ5

Features Of AD5246BKSZ5

128-position
End-to-end resistance 5 kΩ, 10 kΩ, 50 kΩ, 100 kΩ
Ultracompact SC70-6 (2 mm × 2.1 mm) package
I2C® compatible interface
Full read/write of wiper register
Power-on preset to midscale
Single supply 2.7 V to 5.5 V
Rheostat mode temperature coefficient: 45 ppm/°C
Low power, IDD = 0.9 µA at 3.3 V typical
Wide operating temperature –40°C to +125°C

Applications Of AD5246BKSZ5
Mechanical potentiometer replacement in new designs
Transducer adjustment of pressure, temperature, position, chemical, and optical sensors
RF amplifier biasing
Automotive electronics adjustment
Gain control and offset adjustment
