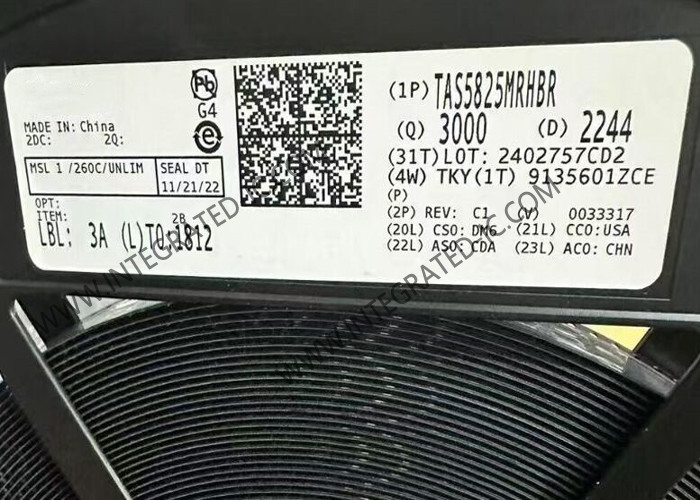

TAS5825MRHBR Integrated Circuit Chip 38W Stereo Class-D Smart Audio Amplifier VQFN-32

TAS5825MRHBR Integrated Circuit Chip 38W Stereo Class-D Smart Audio Amplifier VQFN-32

Product Description Of TAS5825MRHBR

TAS5825MRHBR is a stereo high-performance closed-loop Class-D with an integrated audio processor and up to 192-kHz support.

TAS5825MRHBR——The powerful audio DSP core supports several advanced audio process flows such as 2×15 BQs, 3-Band DRC, Full-band AGL (Automatic Gain Limiter), Smart Amplifier Algorithm (Thermal and Excursion Protection), Bass enhancement, Spatializer, THD manager, PVDD Tracking, and Thermal Foldback.

TAS5825MRHBR has a 48-kHz or 96-kHz architecture with an integrated SRC (Sample Rate Convertor) that detects the input sample rate and auto-converts the input sample to the DSP target sample rate to avoid audio artifacts.

Specification Of TAS5825MRHBR

Features Of TAS5825MRHBR

• High-efficiency Class-D operation
– > 90% Power efficiency, 90 mΩ RDS(on)
– Low quiescent current, <20 mA at PVDD=12V
• Supports multiple output configurations
– 1 × 53 W, 1.0 Mode (4-Ω, 22 V, THD+N=1%)
– 1 × 65 W, 1.0 Mode (4-Ω, 22 V, THD+N=10%)
– 2 × 30 W, 2.0 Mode (8-Ω, 24 V, THD+N=1%)
– 2 × 38 W, 2.0 Mode (8-Ω, 24 V, THD+N=10%)
• Excellent audio performance:
– THD+N ≤ 0.03% at 1 W, 1 kHz, PVDD = 12 V
– SNR ≥ 110 dB (A-weighted), ICN ≤ 35 µVRMS
• Flexible processing features
– 3-Band advanced DRC + AGL,2 × 15 BQs,
– Sound field spatializer (SFS), level meter
– 96-kHz, 192-kHz processor sampling
– Dynamic EQ, Bass enhancement and speaker thermal/excursion protection
• Flexible power supply configurations
– PVDD: 4.5 V to 26.4 V
– DVDD and I/O: 1.8 V or 3.3 V
• Excellent integrated self-protection:
– Over-current error (OCE)
– Cycle-by-cycle current limit
– Over-temperature warning (OTW)
– Over-temperature error (OTE)
– Under and over-voltage lock-out (UVLO/OVLO)
• Easy system integration
– I2C Software control
– Reduced solution size
• Small 5 x 5 mm Package
• Fewer passives required compared to openloop devices
• No bulky electrolytic capacitors or large inductors required for most applications

Applications Of TAS5825MRHBR

• Smart Speakers (with Voice Assistant)
• Wireless, Bluetooth Speakers
• DTV, HDTV, UHD and Multi-Purpose Monitors
• Soundbars and Subwoofers, Notebooks, PC Speakers
