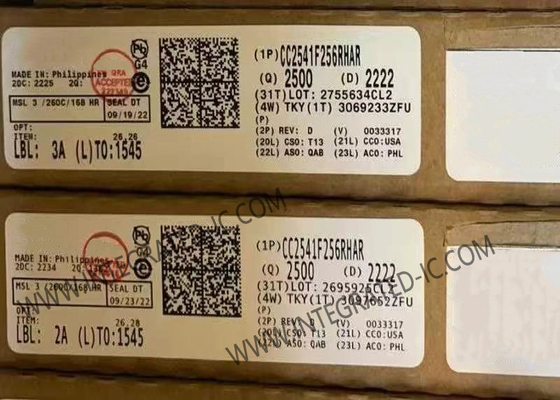

CC2541F256RHAR BT IC 2.4GHz BT Low Energy And proprietary Wireless MCU VQFN-40

CC2541F256RHAR BT IC 2.4GHz BT Low Energy And proprietary Wireless MCU VQFN-40

Product Description Of CC2541F256RHAR

CC2541F256RHAR is a power-optimized true system-on-chip (SoC) solution for both BT low energy and proprietary 2.4-GHz applications. It enables robust network nodes to be built with low total bill-of-material costs.

CC2541F256RHAR combines the excellent performance of a leading RF transceiver with an industry-standard enhanced 8051 MCU, in-system programmable flash memory, 8-KB RAM, and many other powerful supporting features and peripherals.

CC2541F256RHAR is highly suited for systems where ultralow power consumption is required. This is specified by various operating modes. Short transition times between operating modes further enable low power consumption.

Specification Of CC2541F256RHAR

Features Of CC2541F256RHAR

RF
- 2.4GHz BT low energy Compliant and Proprietary RF System-on-Chip
- Supports 250-kbps, 500-kbps, 1-Mbps, 2-Mbps Data Rates
- Excellent Link Budget, Enabling Long-Range Applications - Without External Front End
- Programmable Output Power up to 0 dBm
- Excellent Receiver Sensitivity (–94 dBm at 1 Mbps), Selectivity, and Blocking Performance
Layout
- Few External Components
- Reference Design Provided
- 6-mm × 6-mm QFN-40 Package
- Pin-Compatible With CC2540 (When Not Using USB or I2C)
Low Power
- Active-Mode RX Down to: 17.9 mA
- Active-Mode TX (0 dBm): 18.2 mA
- Power Mode 1 (4-µs Wake-Up): 270 µA
- Power Mode 2 (Sleep Timer On): 1 µA
- Power Mode 3 (External Interrupts): 0.5 µA
- Wide Supply-Voltage Range (2 V–3.6 V)
Microcontroller
- High-Performance and Low-Power 8051 Microcontroller Core With Code Prefetch
- In-System-Programmable Flash, 128- or 256-KB
- 8-KB RAM With Retention in All Power Modes
- Hardware Debug Support
- Extensive Baseband Automation, Including Auto-Acknowledgment and Address Decoding
- Retention of All Relevant Registers in All Power Modes
Peripherals
- Powerful Five-Channel DMA
- General-Purpose Timers (One 16-Bit, Two 8-Bit)
- IR Generation Circuitry
- 32-kHz Sleep Timer With Capture
- Accurate Digital RSSI Support
- Battery Monitor and Temperature Sensor
- 12-Bit ADC With Eight Channels and Configurable Resolution
- AES Security Coprocessor
- Two Powerful USARTs With Support for Several Serial Protocols
- 23 General-Purpose I/O Pins (21 × 4 mA, 2 × 20 mA)
- I2C interface
- 2 I/O Pins Have LED Driving Capabilities
- Watchdog Timer
- Integrated High-PerformanceComparator

Applications Of CC2541F256RHAR
2.4GHz BT low energy Systems
Proprietary 2.4-GHz Systems
Human-Interface Devices (Keyboard, Mouse, Remote Control)
Sports and Leisure Equipment
Mobile Phone Accessories
Consumer Electronics
