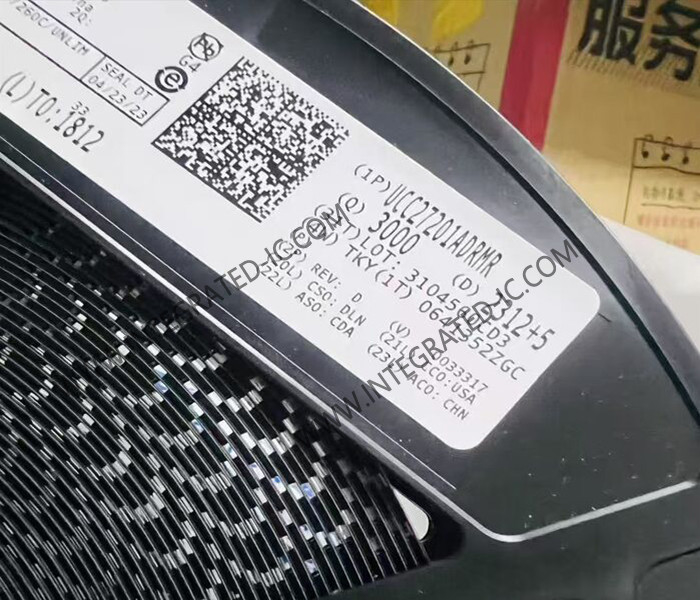

UCC27201ADRMR Integrated Circuit Chip 120V Gate Drivers VSON-8 Half-Bridge Drivers

UCC27201ADRMR Integrated Circuit Chip 120V Gate Drivers VSON-8 Half-Bridge Drivers

Product Description Of UCC27201ADRMR

UCC27201ADRMR is 3A, 120V half bridge gate driver with 8-V UVLO and negative voltage handling.

UCC27201ADRMR——High-frequency N-channel MOSFET drivers include a 120V bootstrap diode and high-side/low-side driver with independent inputs for maximum control flexibility.

Specification Of UCC27201ADRMR

Features Of UCC27201ADRMR

Drives two N-channel MOSFETs in high-side and low-side configuration
Negative voltage handling on HS (–18V)
Maximum boot voltage 120V
Maximum VDD voltage 20V
On-chip 0.65V VF, 0.65Ω RD bootstrap diode
22ns propagation delay times
3A sink, 3A source output currents
8ns rise/7ns fall time with 1000pF load
1ns delay matching
Undervoltage lockout for high-side and low-side driver
Specified from –40°C to 150°C

Applications Of UCC27201ADRMR
Solar power optimizers and micro inverters
Telecom and merchant power supplies
Online and offline UPS
Energy storage systems
Battery test equipment

Simplified Application Diagram Of UCC27201ADRMR

Other Electronic Components In Stock

FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
