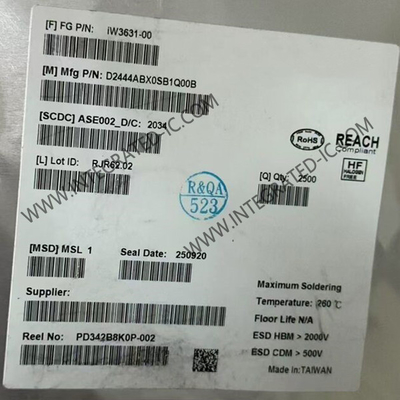

IW3631-00 Integrated Circuit Chip Dimmable Two-Stage Digital AC/DC SSL LED Driver

IW3631-00 Integrated Circuit Chip Dimmable Two-Stage Digital AC/DC SSL LED Driver
IW3631-00 Integrated Circuit Chip Dimmable Two-Stage Digital AC/DC SSL LED Driver

Large Image :  IW3631-00 Integrated Circuit Chip Dimmable Two-Stage Digital AC/DC SSL LED Driver

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: IW3631-00
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: 14-SOIC
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union

IW3631-00 Integrated Circuit Chip Dimmable Two-Stage Digital AC/DC SSL LED Driver

Description
Part Number: IW3631-00 Number Of Outputs: 1
Topology: Flyback, Step-Up (Boost) Dimming: Analog
Highlight:

IW3631-00

,

IW3631-00 Integrated Circuit Chip

,

0-10V Dimming Transformer Driver

IW3631-00 Integrated Circuit Chip Dimmable Two-Stage Digital AC/DC SSL LED Driver



Product Description Of IW3631-00
IW3631-00 two-stage LED driver is a dimmable digital offline PWM controller for solid-state lighting applications up to 120W with high power factor (PF >0.95) and low THD (<10%). It features a built-in driver for isolation transformers that enables direct, 0-10V dimming without the need for an external MCU and driver circuit, reducing cost and complexity. The IW3631-00 can also be implemented to support a PWM dimming interface to simplify use in wireless SSL applications.



Specification Of IW3631-00

Part Status
Active
Type
AC DC Offline Switcher
Topology
Flyback, Step-Up (Boost)
Internal Switch(s)
No
Number of Outputs
1
Dimming
Analog
Applications
General Purpose
Operating Temperature
-40°C ~ 150°C (TJ)
Mounting Type
Surface Mount
Package / Case
14-SOIC



Features Of IW3631-00
Integrated 0-10V Dimming Transformer Driver for 0-10V Dimming Systems
Analog Dimming Input Pin – Wireless Dimming System Compatible
Up to 120W Output Power
High PF (>0.95) and Low THD (<10%) Over Entire Input Voltage Range and 50-100% Load Current
Flickerless™ Technology
Eliminates Virtually All LED Flicker
<5% Line Frequency Ripple on the Output
Fast Start-up Time (<0.5s)
Fully Protected
LED Open/Short Circuit Protection
Single Fault Protection
Current Sense Resistor Short Protection
Input Overvoltage and Brown-Out Protection
Junction Sensor Based Over-Temperature Protection



Applications Of IW3631-00
0-10V Dimmable LED Ballasts up to 90W
Dimmable LED Ballasts with Analog Input up to 90W
Wireless SSL Lighting Systems
