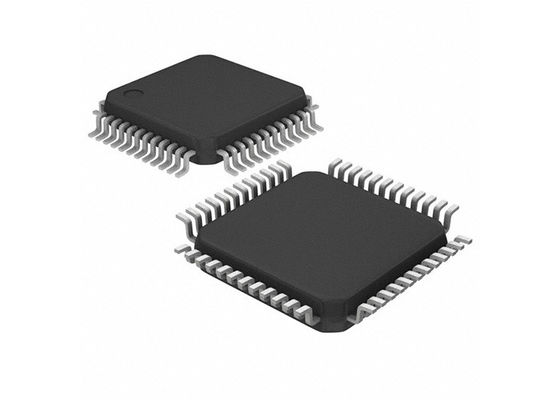

AD2S1210WDSTZ Integrated Circuit Chip R/D Converter with 10-bit to 16-bit Resolution 3125 rps Tracking Rate and ±2.5 Arc Minutes Accuracy

The AD2S1210WDSTZ is a complete 10-bit to 16-bit resolution tracking resolver-to-digital converter, integrating an on-board programmable sinusoidal oscillator that provides sine wave excitation for resolvers. The converter accepts 3.15 V p-p ± 27% input signals, in the range of 2 kHz to 20 kHz on the sine and cosine inputs. A Type II servo loop is employed to track the inputs and convert the input sine and cosine information into a digital representation of the input angle and velocity. The maximum tracking rate is 3125 rps.

Shenzhen Mingjiada Electronics Co., Ltd. is an authorized independent distributor of electronic components of world-renowned brands. Founded in Shenzhen in 1996, Mingjiada has successively established branches in Hong Kong, Japan, Russia, and Taiwan. We have passed certifications carried out in accordance with ISO9001:2014 for quality management systems and ISO14001:2014 for environmental management systems. With an experienced team in sales, R&D and management, we specialize in distributing products from more than 500 well-known manufacturers. Adhering to the tenet of "maximizing benefits for customers", we offer a complete range of products and also provide high-quality and responsive service with our professional logistics and customer service teams. Mingjiada has developed into a major (authorized and non-authorized) electronic component distributor that is well known in domestic and foreign IC markets.
